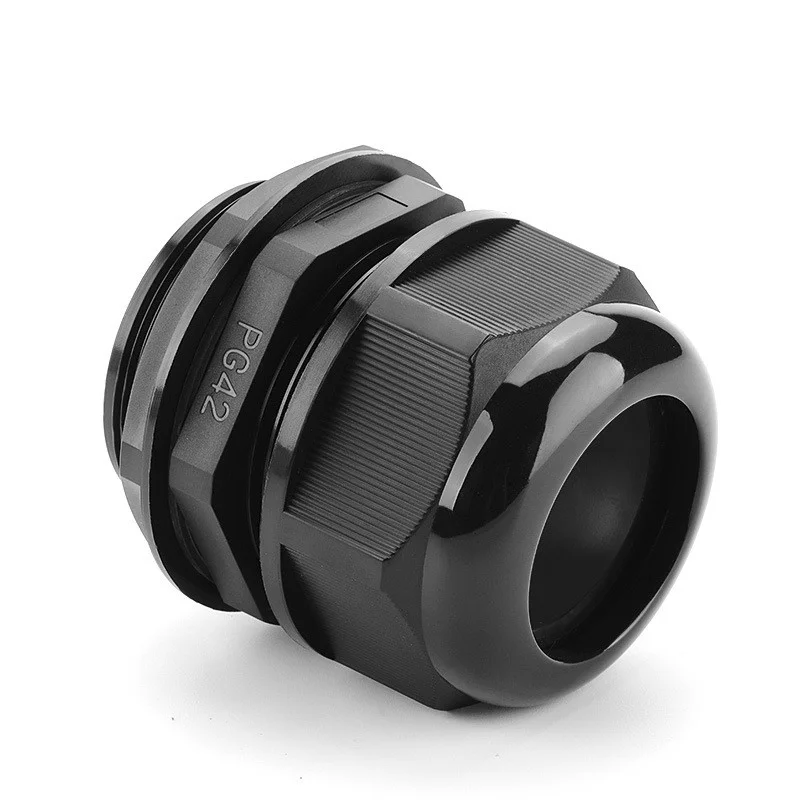

Plastic PG Cable Gland

What is a Plastic PG Cable Gland?

Definition and Function

A plastic PG cable gland is a high-performance sealing device designed to secure the end of an electrical cable to an enclosure or instrument. Its primary function is to provide reliable strain relief and environmental protection. By gripping the cable firmly, it prevents mechanical stress from damaging internal connections while ensuring a dust-tight and waterproof seal at the entry point.

Understanding PG Thread Dimensions

The term “PG” refers to Panzer-Gewinde, a technical thread standard originating from Germany (DIN 40430). Unlike metric threads that use a standard millimeter pitch, PG threads are characterized by a shallower thread depth and a specific flank angle.

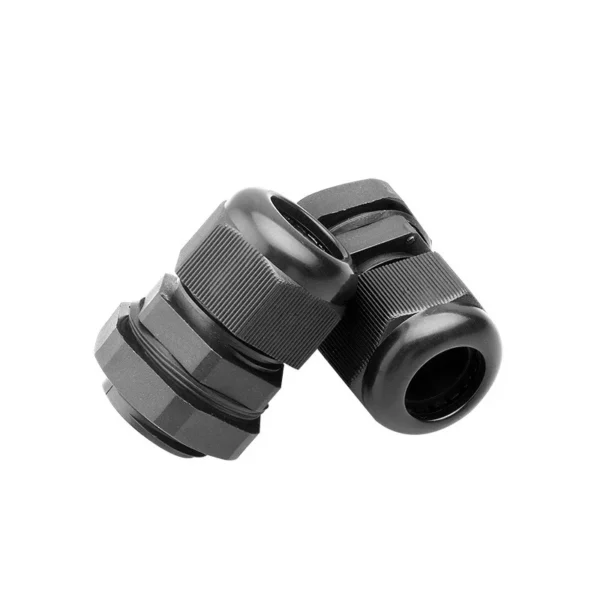

Common sizes range from the compact PG7 cable gland to the heavy-duty PG63. Understanding these dimensions is critical for ensuring a precise fit within pre-drilled housing holes, maintaining the integrity of the entire electrical system.

Key Components and Materials

Our plastic PG cable glands are engineered using premium Polyamide (Nylon), known for its high mechanical strength and thermal stability. The assembly typically consists of four core components:

• Sealing Nut: Provides the necessary torque to compress the internal seal.
• Clamping Claw: Distributes pressure evenly around the cable for superior grip.
• Internal Seal: Usually made of NBR or EPDM rubber for maximum weather resistance.
• Main Body: Features the specific PG thread for secure mounting.

Key Features and Advantages of Plastic PG Cable Glands

Choosing the right plastic PG cable gland means securing your electrical connections against harsh environments. These components offer distinct advantages for modern wiring setups, ensuring long-term reliability without the high cost or weight of metal alternatives.

Excellent Corrosion and Chemical Resistance

Unlike metal options that rust over time, a plastic pg gland delivers exceptional resistance to acids, alkalis, and industrial solvents. We engineer these glands using high-grade polymers like Polyamide (Nylon). This material choice prevents degradation in damp environments or chemical processing plants, making them a maintenance-free staple for harsh industrial setups.

IP Rating and Waterproof Protection

Moisture is the ultimate enemy of electrical systems. Our pg cable glands feature high-performance dustproof and waterproof seals, typically achieving an IP68 rating. This ensures a tight, submersible seal that locks out water, dust, and contaminants.

Durability and Temperature Range

These glands are built to endure tough environmental shifts. They maintain high tensile strength and structural integrity across a wide operating temperature range, typically from -40°C to 100°C (and up to 120°C for short periods). Furthermore, the stabilized plastic compound resists UV radiation, preventing the material from becoming brittle or cracking when exposed to direct sunlight in outdoor installations.

Standard Sizes and Specifications

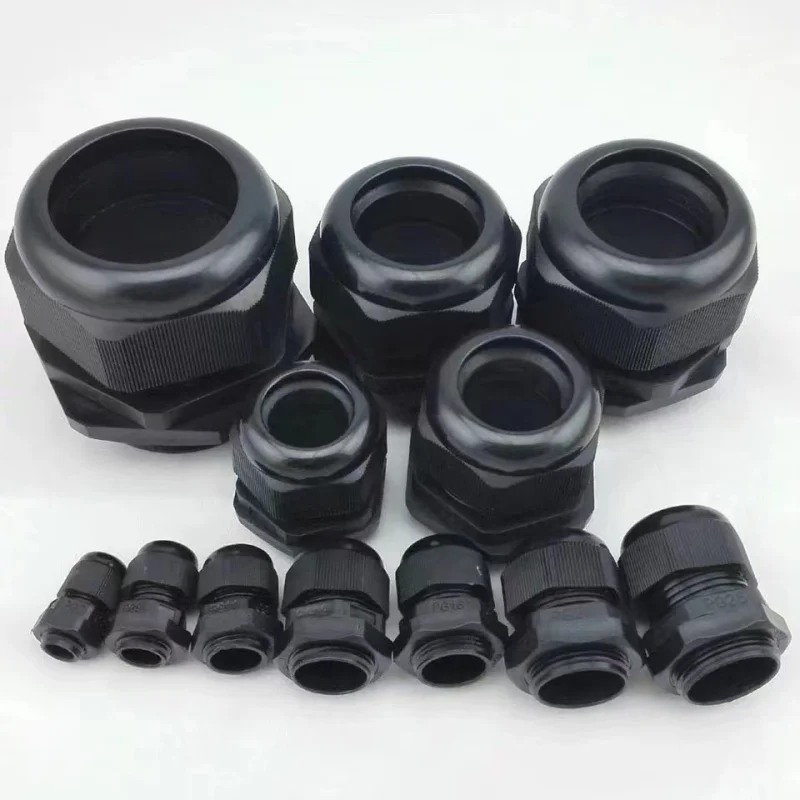

Common Sizes from PG7 to PG63

We manufacture our plastic PG cable gland range to meet standard German thread dimensions, ensuring complete compatibility with your existing enclosures and panels. Our standard product lineup spans from the compact cable gland pg 7 up to the heavy-duty PG63, covering almost every industrial wiring requirement.

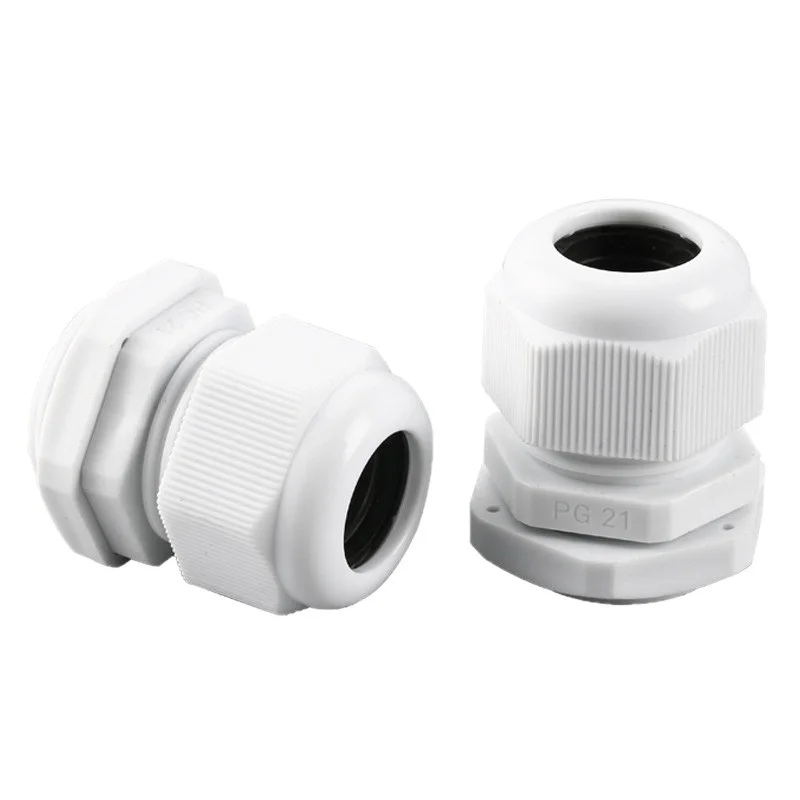

The most frequently requested options for standard control boxes include the pg 9 cable gland, pg 11 cable gland, pg 13.5 cable gland, and pg 16 cable gland. For larger power distribution lines, we supply high-capacity options like the pg 21 cable gland, pg 25 cable gland, and pg 32 cable gland.

Clamping and Cable Diameter Ranges

Choosing the correct cable gland pg size chart is critical to achieving a perfect environmental seal. Each pg gland size features a specific clamping range designed to grip the cable tightly without causing insulation damage.

Main Applications and Industry Uses

Plastic PG cable glands are essential components used across various industries to secure cables, provide strain relief, and maintain environmental seals. Our pg cable glands ensure that dust, moisture, and debris stay out of sensitive equipment, protecting your electrical systems from damage.

Electrical Control Panels and Enclosures

In modern electrical setups, control panels and junction boxes require robust protection at entry points. Using a reliable pg gland prevents cables from pulling out or rubbing against sharp metal edges.

• Secure Entry: Maintains the IP rating of the electrical enclosure.
• Strain Relief: Prevents internal wire terminations from pulling loose during operation or maintenance.
• Neat Organization: Keeps incoming and outgoing wires organized alongside other cable management tools, such as heavy-duty flat cable clips used inside the housing.

Industrial Automation and Machinery

Manufacturing plants and automated production lines subject cables to constant vibration, movement, and harsh conditions. Implementing the correct cable gland pg size ensures uninterrupted power and signal transmission for sensitive machinery.

• Vibration Resistance: The integrated locking mechanisms prevent the seal from backing off under constant machine vibrations.
• Versatile Sizing: From small sensor connections using a cable gland pg 7 to heavy-duty power lines requiring larger sizes, these glands fit various industrial machine setups seamlessly.
• Chemical Defense: The high-grade plastic body resists machine oils, coolants, and common industrial solvents.

Outdoor Lighting and Power Distribution

Outdoor electrical installations face continuous exposure to rain, UV rays, and extreme temperature shifts. Our plastic PG cable glands provide a dependable, weatherproof seal that extends the lifespan of outdoor infrastructure.

• Weatherproof Performance: Keeps water out of street lighting, architectural LED setups, and outdoor security cameras.
• UV and Corrosion Protection: Unlike metal alternatives that can rust or corrode over time, high-quality plastic construction stands up to long-term sun and moisture exposure.
• Infrastructure Reliability: Ideal for commercial power distribution boxes, renewable energy systems, and telecommunication hubs.

How to Select the Right Plastic PG Cable Gland

Choosing the right plastic PG cable gland ensures your electrical system remains safe and watertight. We recommend focusing on the specific environment and the exact thickness of your wiring to avoid common installation failures.

Matching Cable Diameters and Thread Sizes

The most critical step is ensuring the pg gland dimensions align with your cable’s outer diameter. A gland that is too large won’t provide a proper seal, while one that is too small will damage the cable jacket.

Choosing the Right Color Options

While aesthetics matter, color often indicates application. We provide standard options to match your equipment:

• Black: Best for outdoor use as it offers superior UV resistance. For additional cable management outdoors, consider using black tie wraps to keep everything organized.
• Grey: The industry standard for indoor control panels and junction boxes.
• White/Blue: Often used for specific signaling or clean-room environments.

Installation and Maintenance Best Practices

To get the most out of your pg cable glands, follow these professional tips for a secure fit:

• Hand-Tighten First: Always start by hand to avoid cross-threading the plastic body.
• Use the Right Tool: Finish with a wrench for a snug fit, but do not over-torque, as this can crack the nylon.
• Check the Gasket: Ensure the internal seal is seated correctly to maintain the IP68 rating.
• Regular Inspections: In high-vibration areas, check the tightness every few months to prevent loosening.
• Environmental Protection: If you need extra insulation or strain relief at the connection point, using tube heat shrink before inserting the cable into the gland can provide an added layer of durability.
