What Are Plastic Metric Cable Glands?

Definition and Function in Electrical Systems

Plastic metric cable glands are essential mechanical cable entry devices used to secure, seal, and protect electrical cables where they enter equipment enclosures, junction boxes, or control panels. Their primary function is to provide reliable strain relief to prevent cables from being pulled or twisted out of terminal connections. Additionally, an electrical cable gland seals the entry point against environmental contaminants like dust, moisture, and water, maintaining the integrity of the entire electrical system.

Understanding Metric Thread Sizes (M12 to M63)

Metric cable gland sizes are standardized according to European thread specifications, designated by the letter “M” followed by the outer thread diameter in millimeters. Selecting the correct metric cable gland size chart ensures a precise fit for both the cable diameter and the mounting hole.

Note on Standard Differences: When comparing a cable gland NPT vs metric, metric threads utilize a straight, parallel design with a standard 1.5mm pitch, requiring an O-ring for a waterproof seal. NPT (National Pipe Thread) uses a tapered design common in North American markets.

Material Composition: Nylon and Polyamide Properties

High-quality plastic cable glands are engineered from premium Nylon 66 or Polyamide (PA6), offering superior structural properties suited for global industrial markets:

• High Mechanical Strength: Resists impact, tensile stress, and physical wear during installation and operation.
• Thermal Stability: Maintains structural integrity across a wide operating temperature range, typically from -40°C to 100°C.
• Chemical Resistance: Highly resilient against oils, greases, weak acids, alcohol, and common industrial solvents.
• Flammability Rating: Typically rated UL94V-2 self-extinguishing, ensuring code-compliant fire safety in commercial and industrial settings.

Key Features and Advantages of Plastic Cable Glands

When choosing metric cable glands for your electrical setups, plastic options offer distinct advantages over metal. Our heavy-duty plastic cable glands provide long-lasting protection, easy installation, and incredible durability in demanding environments.

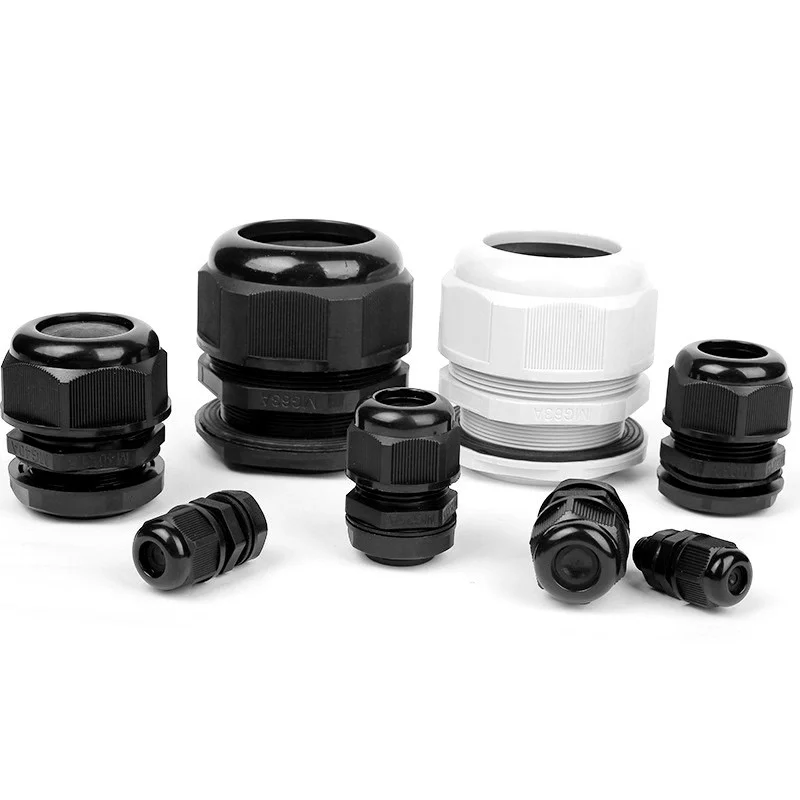

IP67 and IP68 Waterproof Protection

Moisture is the ultimate enemy of electrical wiring. Our weather proof cable gland designs offer superior sealing capabilities to keep your enclosures bone dry.

Strain Relief and Vibration Resistance

Loose wires lead to system failures. Our nylon cable gland line-up features an integrated claw design that grips cables firmly without damaging the jacket.

• Secure Strain Relief: Prevents cables from being pulled out of the terminal block by accidental tugs.
• Vibration Resistance: The internal locking mechanism ensures the dome nut won’t back off, even when mounted on high-vibration industrial machinery.
• Cable Longevity: Eliminates sharp bending at the entry point, extending the lifespan of your expensive wiring.

Corrosion Resistance in Harsh Environments

Unlike metal alternatives that rust, pit, or oxidize over time, our high-grade synthetic electrical cable gland solutions are built to last. They offer total immunity to salt water, weak acids, and alcohol. This makes them the go-to choice for coastal installations, chemical processing facilities, and outdoor environments exposed to constant UV rays and rain.

Types of Plastic Metric Cable Glands

We offer a diverse range of plastic cable glands designed to handle various installation challenges, from tight corners to high-movement machinery. Choosing the right style ensures your wiring remains secure and protected against environmental stress.

Standard Nylon Metric Cable Glands

Our standard nylon cable gland is the go-to choice for general electrical projects. These provide a reliable, airtight seal for circular cables and are widely used in junction boxes and distribution boards. If you are looking for high-quality options, you can explore our full range of durable cable glands to find the perfect fit for your housing requirements.

90-Degree Right Angle and Elbow Glands

When space is tight, 90-degree right angle glands are essential. These “elbow” connectors allow for clean cable entry in compact enclosures where a straight connection would cause harmful wire kinking. They maintain a low profile while ensuring the internal wires aren’t under constant tension.

Spiral Flex Bend Protection Cable Glands

For equipment that moves or vibrates, spiral flex bend protection is a must-have. These glands feature an extended spiral “tail” that supports the cable’s natural bend radius.

• Prevents wire fatigue: Ideal for handheld devices and robotics.
• Kink resistance: Ensures data and power flow aren’t interrupted by sharp folds.
• Extended lifespan: Greatly reduces the need for frequent cable maintenance.

Multi-Hole and Flat Cable Glands

Not every setup uses a single round wire. We provide specialized inserts to accommodate unique configurations:

• Multi-Hole Glands: Route several small wires through a single metric cable gland entry point without losing the IP seal.
• Flat Cable Glands: Specifically shaped to grip flat power strips or ribbon-style cables securely.

Specialized Application Scenarios for Metric Cable Glands

Industrial Automation and Control Panels

In modern manufacturing, keeping dust and moisture out of control panels is critical. We design our plastic cable glands to secure power and signal lines entering PLC cabinets and machinery. These metric cable glands provide tight seals that protect sensitive internal electronics from the constant washdowns and vibrations common on the factory floor.

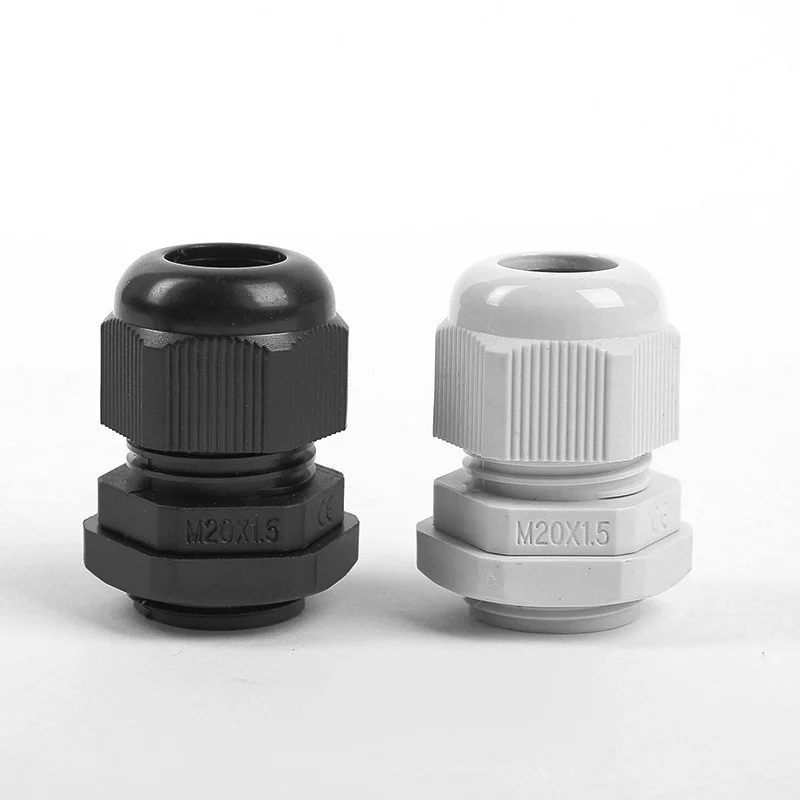

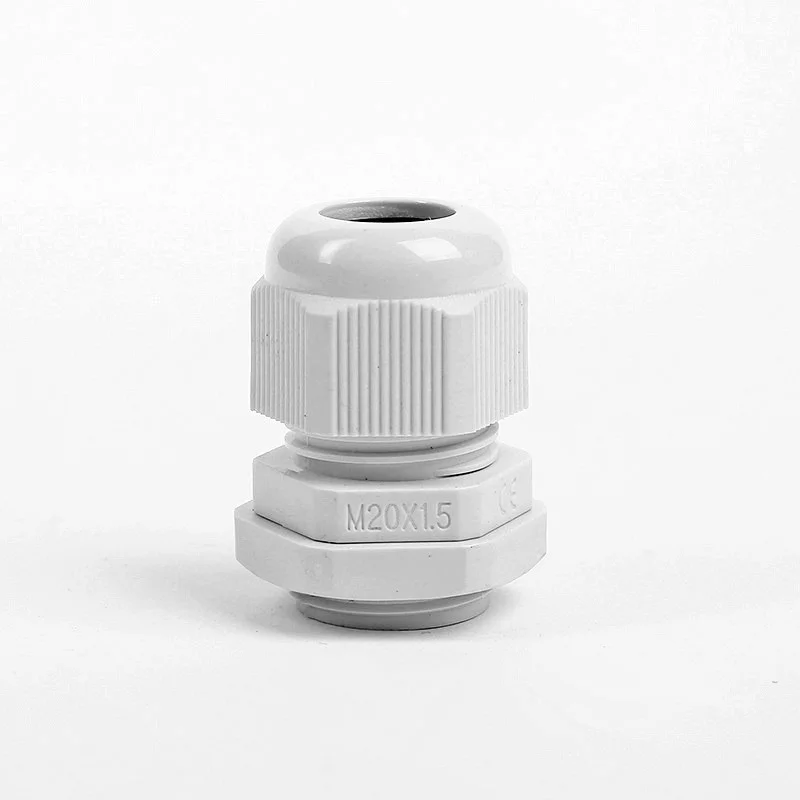

• Common Size: The m20 cable gland is the industry standard for sensor and actuator wiring.
• Organization: For clean routing, combining these glands with heavy-duty saddle cable tie mounts keeps internal panel wiring neat, secure, and clear of moving components.
• Benefit: Prevents accidental cable pull-outs during routine machine maintenance.

Ex-Rated and Hazardous Area Environments

Safety is non-negotiable in environments with airborne dust or flammable gases. While standard nylon cable gland options handle everyday commercial jobs, hazardous zones require specialized Ex-rated metric variants.

Our specialized hazardous-area electrical cable gland designs prevent electrical sparks from escaping the enclosure, ensuring your facility stays compliant with local global safety codes.

Renewable Energy: Photovoltaic and Wind Systems

Outdoor renewable energy setups face brutal weather, from intense UV exposure in solar farms to high humidity in wind turbines. This is where a high-grade weather proof cable gland proves its worth.

• Solar Installations: M12 cable gland and m25 cable gland models secure inverter connections and combiner boxes, resisting UV degradation over decades of sun exposure.
• Wind Turbines: Larger sizes like the cable gland m32, m40, and m50 manage heavy power transmission cables in the nacelle, absorbing the continuous structural vibrations.
• Long-Term Reliability: Tough polyamide construction ensures the cable gland metric seals will not crack or leak when exposed to extreme temperature swings.

How to Choose the Right Plastic Metric Cable Gland

Choosing the right metric cable glands keeps your electrical systems running smoothly and safely. Picking the wrong size or rating can lead to loose wires, water leaks, and costly equipment failure. We need to focus on three critical factors to get the perfect match.

Measuring Cable Diameter and Mounting Hole Size

You cannot guess the sizes when dealing with a metric cable gland. You need to know two main measurements: the outside diameter (OD) of your cable and the size of the mounting hole on your panel or enclosure.

Here is a quick metric cable gland size chart reference for our standard lineup to help you match your cables to the right panel holes:

Pro Tip: Always choose a gland where your cable diameter sits right in the middle of the clamping range. This ensures the internal seal compresses perfectly around the cable jacket.

Selecting the Correct IP Rating for Your Environment

Your installation environment dictates the type of weather proof cable gland you need. Ingress Protection (IP) ratings classify how well the gland keeps out solids and liquids. For plastic setups, we generally rely on two main standards:

• IP67 Rating: Dust-tight and protects against temporary immersion in water (up to 1 meter for 30 minutes). Perfect for general outdoor wiring and washdown areas.
• IP68 Rating: Dust-tight and offers continuous underwater protection under pressure. This is the gold standard for heavy-duty industrial automation and marine applications.

If your project also requires secure wire management inside the cabinet before the cable exits through the gland, pair your setup with reliable electrical cable clamps to keep everything organized and strain-free.

Compliance with International Electrical Safety Standards

We do not cut corners on safety, and neither should you. High-quality plastic cable glands must comply with international electrical and safety standards to ensure long-term reliability.

When sourcing a nylon cable gland for global markets, always verify these certifications:

• CE Marking: Ensures compliance with European health, safety, and environmental protection standards.
• RoHS Directive: Guarantees the materials are free from hazardous substances like lead or cadmium.
