PVC Marking Tube

What is a PVC Marking Tube?

Definition and Primary Function

A PVC marking tube—frequently called a PVC wire marker tube or cable marking sleeve—is a specialized insulation sleeve engineered for clear, long-lasting cable identification and wire marking. Manufactured from premium, high-flexibility polyvinyl chloride, its primary function is to provide permanent, high-contrast line number marking on individual conductors and cables. It insulates electrical connection points while systematically organizing complex wiring assemblies for rapid troubleshooting and maintenance.

How PVC Tubing Works for Wire Identification

Using printable PVC tubing streamlines panel building and electrical routing through a simple three-step process:

• • Printing: Continuous tubing feeds directly into an industrial tube printer or cable ID printer, where thermal transfer ribbons print precise, smudge-resistant characters onto the surface.
  • Cutting: The printer cuts the tubing into custom-length segments according to programmed circuit schedules.
  • Installation: Technicians slide the printed PVC sleeve for wire identification over the wire prior to terminal connection, establishing a secure, non-slip fit without adhesives.

Key Features and Technical Characteristics

Material Durability and Flexibility

We manufacture every PVC marking tube from high-grade polyvinyl chloride resin to deliver long-lasting performance in demanding electrical environments. The material balances structural integrity and elasticity, allowing smooth feeding through standard cable ID printers without flattening, binding, or jamming.

• • Oil and Chemical Resistance: Prevents material breakdown when exposed to grease, solvents, and common industrial fluids.
  • UV and Abrasion Resistance: Ensures printed line number marking remains crisp and legible over years of service.
  • Kink Prevention: The PVC sleeve for wire identification maintains its round shape for rapid manual threading.

Non-Shrinkable vs. Heat Shrinkable Tubing

Selecting between a non-shrink PVC ferrule tube and heat shrinkable sleeves depends on assembly speed, vibration levels, and project budget constraints.

Temperature Resistance and Flame Retardancy

Our printable PVC tubing performs reliably across standard industrial operating ranges, typically rated from -40°C to 105°C (-40°F to 221°F). Standard self-extinguishing formulations achieve UL94 V-0 or VW-1 ratings, preventing flame propagation across bundled cables during thermal overloads.

Evaluating thermal performance and heat resistance and material properties ensures your chosen cable marking sleeve withstands severe enclosure temperatures without cracking, softening, or compromising panel safety.

Types and Product Specifications

We design our pvc marking tube inventory to meet exact panel building and wiring standards across industrial environments. Selecting the right specifications ensures seamless feeding through your tube printer and guarantees permanent wire marking clarity.

Inner Diameter Sizes and Wall Thickness

Proper sizing prevents slipping and keeps your pvc ferrule tube securely positioned on the conductor. We manufacture every pvc sleeve for wire identification with uniform inner diameters and precise wall thickness for effortless feeding and crisp line number marking.

Color Variations and Classifications

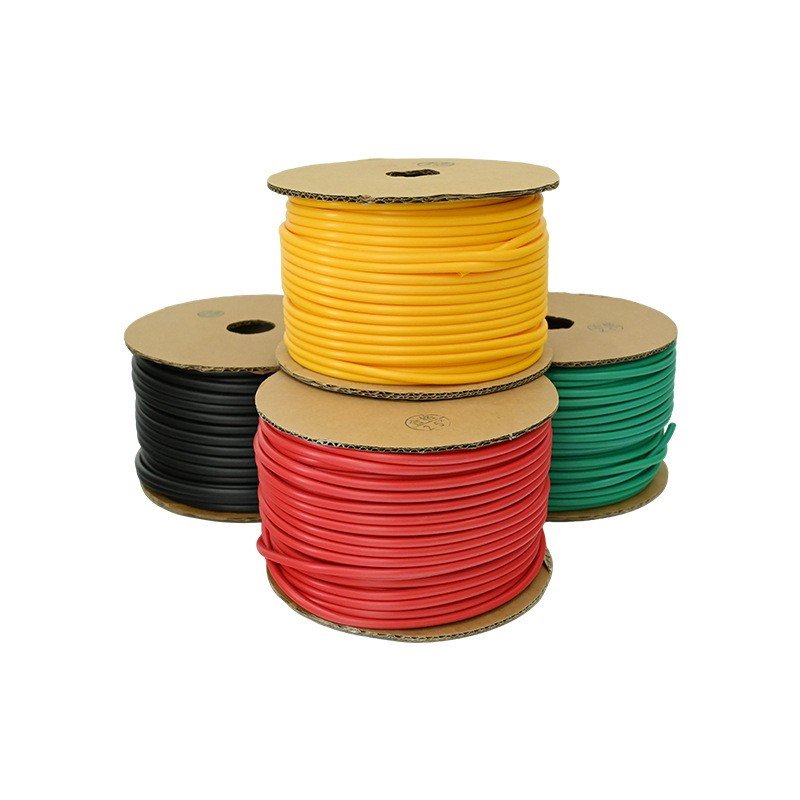

Color coding speeds up routine circuit tracing, maintenance, and cable identification. Our printable pvc tubing comes in high-contrast finishes optimized for carbon ribbon heat transfer:

• • White: The industry standard for high-legibility black ink printing on control panels and switchboards.
  • Yellow: Frequently specified for safety circuits, warning lines, and ground line number marking.
  • Clear / Transparent: Ideal when you need to view underlying wire jacket colors while adding a protective cable marking sleeve layer.
  • Red / Blue / Green: Custom color runs used for phase marking, DC circuit distinction, or specialized telecommunication standards.

Standard vs. Economical PVC Tube Lineup

At WANDU, we supply both high-grade standard lines and cost-effective alternatives to match your project budget and operational requirements. While organizing cabinet wiring using standard cable ties handles general wire management, choosing the right pvc wire marker tube grade guarantees long-term marker permanence.

• • Standard PVC Tube Lineup: Made from premium virgin PVC compound. Offers high elasticity, superior oil resistance, consistent surface tension for clean ink transfer via a cable ID printer, and reliable long-term flame retardancy.
  • Economical PVC Tube Lineup: Formulated for cost-sensitive commercial projects. Provides good flexibility and clear print quality, ideal for standard indoor control panels without extreme environmental exposure.

Printer Compatibility and Consumables

We design our printable PVC tubing to integrate smoothly into standard wire marking workflows. Matching the right cable marking sleeve with high-grade consumables ensures crisp, permanent legibility without equipment downtime.

Compatible Cable ID Printers

At WANDU, we manufacture each PVC ferrule tube with strict wall tolerances and high dimensional consistency. Our PVC marking tube products feed reliably through both handheld and desktop cable ID printer models.

• • Supported Printer Brands: Fully compatible with major systems, including Canon (Mk2600, Mk1500), MAX LETATWIN (LM-550A, LM-390A, LM-380E), Supvan, and Epson tube printer equipment.
  • Jam-Free Feeding: Uniform roundness and anti-twist flexibility prevent feeding slips, surface binding, or cutter jams during long automated printing runs.
  • Precision Fit: Standardized inner diameters fit effortlessly into printer feed guides for accurate text alignment and clean cuts.

Marking Foils and Printing Ribbons

Pairing PVC sleeves with high-adhesion thermal transfer ribbons guarantees long-term text retention across high-density panel installations.

• • Resin Ribbons: We recommend specialized resin-based marking foils formulated to bond directly with printable PVC surfaces.
  • Smudge & Chemical Resistance: Imprinted characters resist mechanical abrasion, transformer oils, cleaning solvents, and heat exposure.
  • High Contrast: Available in solid black and white inks to ensure sharp line number marking and rapid visual identification in dark control cabinets.

Primary Application Scenarios

Clear circuit labeling is critical for reducing downtime, preventing miswiring, and ensuring operational safety across complex electrical systems. We supply our pvc marking tube solutions to meet strict global standards in demanding industrial and commercial environments.

Electrical Switchboard and Control Panel Wiring

High-density switchboards and distribution cabinets require precise line number marking to keep terminal connections organized.

• • Fast Circuit Tracing: Every pvc sleeve for wire identification slides cleanly onto conductor ends before termination, making panel assembly and future maintenance effortless.
  • System Integrity: Combining accurate wire sleeves with secure plastic PG and metric cable glands ensures that panel entries remain sealed while keeping internal wiring perfectly categorized.

Telecommunications and Network Cable Identification

In large-scale telecom racks, server rooms, and data infrastructure, tracing unmarked lines leads to costly downtime.

• • High-Legibility Labeling: Printed PVC sleeves provide sharp, fade-resistant text across dense patch panel runs and trunk lines.
  • Streamlined Upgrades: Technicians can quickly identify specific data channels during routine rerouting or emergency repairs without disturbing surrounding connections.

Industrial Equipment Wire Management

Factory automation, heavy machinery, and motor control circuits subject wiring to constant vibration, mechanical stress, and mild chemical exposure.

• • Durable Protection: Functioning as a tough cable marking sleeve, our PVC tubing protects printed identifiers from oils, friction, and environmental wear.
  • Long-Term Identification: Keeps internal motor leads, sensor cabling, and power distribution circuits permanently marked throughout the equipment’s service life.

Selection and Buying Guide

Selecting the right pvc marking tube ensures fast installation, clean panel organization, and long-term legibility across your control systems.

How to Choose the Right Diameter and Fit

Matching the tube’s inner diameter (ID) to your wire’s outer diameter (OD) is essential for a secure friction fit.

• • Measure Full Wire OD: Always calculate the total wire diameter including outer insulation, not just the copper core.
  • Friction Fit: A proper pvc sleeve for wire identification should slide smoothly over the cable without slipping out of place during panel vibration.
  • Printing Margin: Ensure your printable pvc tubing diameter matches your tube printer’s feed mechanism to prevent feeding jams or misaligned text.

Commercial and Environmental Considerations

When buying in bulk for large industrial projects, evaluate operational environments and supply consistency to maximize value.

• • Operating Environment: For standard control panels, flame-retardant grade PVC works best. For wet or outdoor cabinets, seal enclosure entries using waterproof cable glands while using high-contrast pvc ferrule tube sleeves inside.
  • Chemical & Oil Exposure: Ensure the cable marking sleeve material resists machine oils, industrial solvents, and continuous mechanical stress.
  • Bulk Packaging: We supply continuous roll spools to reduce material waste, speed up high-volume batch printing, and lower overall cost per marker.
