Stainless Steel Hose Clamps​

What Are Stainless Steel Hose Clamps?

Definition and Working Principle

Stainless steel hose clamps—commonly known as a metal hose clamp or ss hose clamp—is a mechanical fastening device engineered to join flexible hoses onto rigid pipes, fittings, or nipples. By applying uniform, 360-degree radial force around the connection point, it prevents fluid or air leakage under pressure.

The mechanical operation relies on reducing the clamp’s inner diameter using a dedicated tensioning assembly:

As you turn the screw on a stainless steel adjustable hose clamp, the thread drives the band through the housing, decreasing the loop size and creating an airtight seal around the fitting.

Key Benefits of Stainless Steel Construction

Upgrading to high-grade hose clamps stainless steel construction delivers significant operational advantages over standard carbon steel or plastic fasteners:

• • Superior Corrosion Resistance: High chromium and nickel content shields against rust, oxidation, moisture, and chemical exposure.
  • High Tensile Strength: Capable of withstanding elevated operating pressures and heavy vibrations without stretching or loosening.
  • Extreme Temperature Tolerance: Retains structural integrity across severe thermal ranges, from sub-zero environments to extreme heat.
  • Long-Term Durability: Reusable design significantly lowers maintenance costs and system downtime.

Common Types of Stainless Steel Hose Clamps

Selecting the right stainless steel hose clamps is crucial for ensuring leak-free connections and long-term durability. Depending on your pressure requirements, band tension, and assembly speed, we offer several distinct designs engineered to meet diverse global industrial demands.

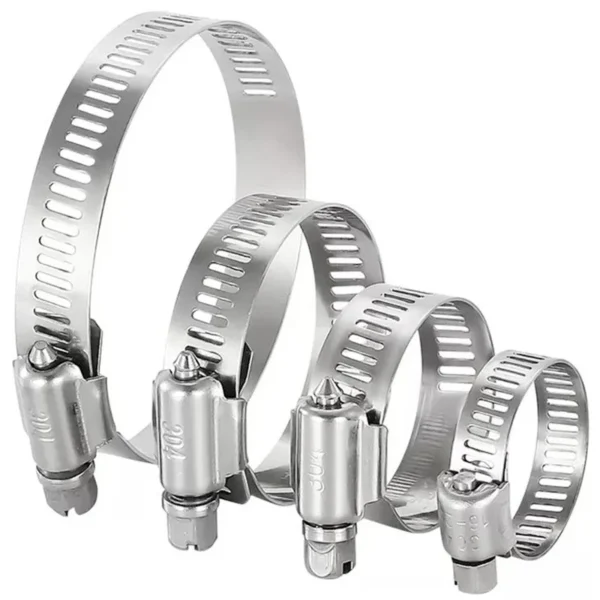

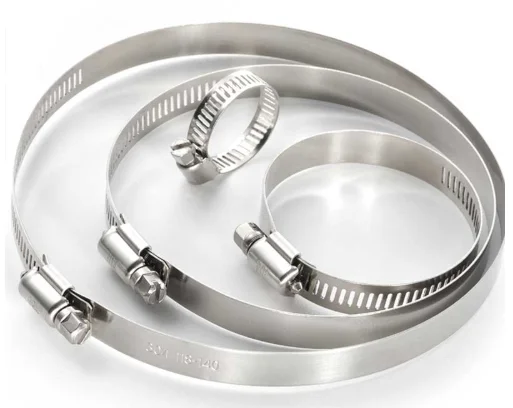

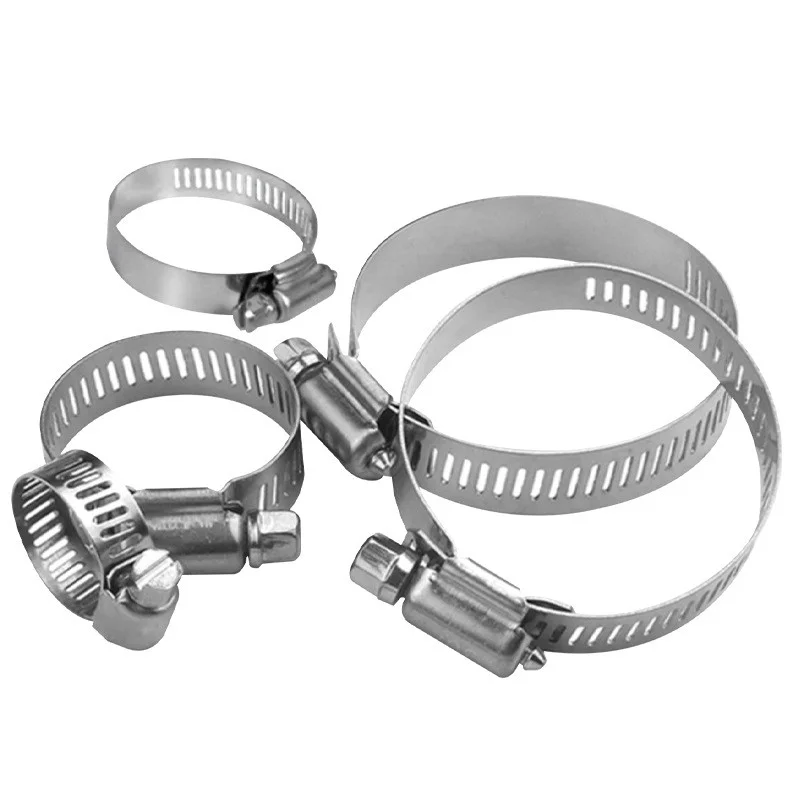

Worm-Drive Hose Clamps

The standard adjustable stainless steel hose clamp uses a worm-gear mechanism where a screw engages with precision slots cut into the band to adjust the clamp diameter.

• • Primary Uses: Low-to-medium pressure applications in plumbing, automotive cooling, and general industrial maintenance.
  • Key Features: Versatile, reusable, and easily adjusted with standard flathead, Phillips, or hex tools.
  • Design Advantage: Smooth inner band construction helps prevent soft hose wall damage during installation.

T-Bolt Hose Clamps

For demanding systems requiring high torque and reliable sealing force, heavy duty stainless steel hose clamps with a T-bolt mechanism offer maximum strength.

• • Primary Uses: High-pressure industrial systems, turbocharger piping, intake systems, and heavy machinery.
  • Key Features: Delivers high tensile strength, uniform radial tension, and exceptional resistance to severe vibration.
  • Design Advantage: A thick stainless band backed by a solid locknut structure prevents deformation under extreme tightening torque.

Single Ear and Pinch Clamps

Single ear ss hose clamps feature a simple loop design that is crimped with a specialized tool to create a permanent, tamper-resistant seal.

• • Primary Uses: Compact spaces, beverage dispensing, thin-walled hoses, and permanent fluid line installations.
  • Key Features: Provides a continuous 360-degree seal with reliable compression that resists thermal expansion and vibration.
  • System Integration: When managing tight machinery spaces or control cabinets, combining these compact line clamps with specialized clamps for cables ensures both fluid lines and electrical wiring remain secure and organized.

Quick Release Hose Clamps

Designed for rapid installation and removal, quick-release mechanisms feature a swivel-action screw that disengages completely from the band for instant positioning.

• • Primary Uses: HVAC ducting, industrial filtration, pollution control, and systems requiring frequent maintenance.
  • Key Features: Fast latching and unlatching without needing to unthread the full length of the band screw.
  • Design Advantage: Highly effective for large stainless steel hose clamps where rapid adjustment saves significant field labor time.

1. • Regional Design Styles and Features

When we supply stainless steel hose clamps across global markets, regional design standards often dictate band structure, thread profile, and hose protection. Understanding these three primary styles ensures you select the right metal hose clamps for your specific application.

American Type Hose Clamps

The American style is the standard adjustable stainless steel hose clamp used widely across automotive and plumbing sectors.

• • Perforated Band: Features rectangular slots punched directly through the band.
  • Worm-Drive Mechanism: Screw threads engage directly with the punched slots for fast, straightforward installation.
  • Key Advantage: Cost-effective and highly versatile for standard hose maintenance.
  • Best Used For: Low-to-medium pressure plumbing, vehicle radiator lines, and general equipment maintenance.

German Type Hose Clamps

German style ss hose clamps are engineered specifically to protect soft hoses from damage under high tension.

• • Non-Perforated Band: Outside-embossed threads keep the inner band surface completely smooth.
  • Rolled Edges: Flared band edges prevent biting or shearing into soft rubber and silicone hoses.
  • Uniform Radial Force: Ensures equal pressure distribution across the entire hose circumference.
  • Best Used For: Automotive turbochargers, high-performance engines, and sensitive industrial fluid lines.

British Type Hose Clamps

British design steel hose clamps feature heavy-duty construction built for demanding mechanical environments.

• • Pressed Thread Design: Continuous smooth serrations offer excellent thread engagement without weakening the metal band.
  • Robust Housing: Welded screw housings handle higher clamping torques without slipping or detaching.
  • Corrosion Resistance: Frequently manufactured as a 304 stainless steel hose clamp or 316 grade for marine reliability.
  • Best Used For: Marine engineering, agricultural equipment, and high-vibration industrial machinery.

Regional Style Comparison

While our heavy-duty metal clamps for hoses handle high-pressure lines, managing adjacent electrical harnesses requires complementary mounting solutions—explore different types of cable ties to keep your entire assembly clean and organized.

Material Options and Grades

Choosing the right material grade for stainless steel hose clamps directly impacts overall system safety and operational lifespan. Not all metal hose clamps offer equal protection, so matching the alloy construction to your operating environment prevents joint failure and rust.

All-Stainless vs. Part-Stainless Hose Clamps

We offer both full and partial stainless construction depending on your budget and environmental demands:

• • All-Stainless Hose Clamps: Every component—band, housing, and screw—is made entirely of stainless steel. They deliver maximum rust protection and long-term durability in wet, outdoor, or corrosive environments.
  • Part-Stainless Hose Clamps: These feature a stainless steel band paired with a zinc-plated carbon steel screw. They provide a cost-effective solution for basic indoor jobs, though the screw remains vulnerable to surface rust over time.

304 vs. 316 Stainless Steel Grades

When selecting high-performance ss hose clamps, steel chemistry determines ultimate endurance against harsh elements:

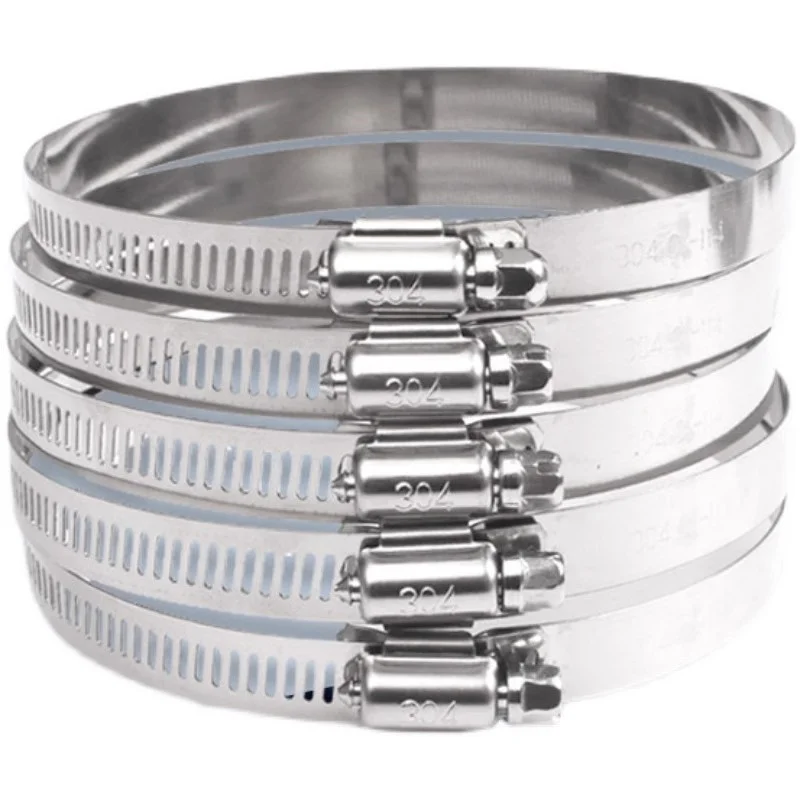

• • 304 Stainless Steel Hose Clamp: The industrial baseline for high strength and rust resistance. Perfect for standard automotive, plumbing, HVAC, and general manufacturing needs.
  • 316 Stainless Steel Hose Clamps: Alloyed with molybdenum to resist pitting from chlorides, saltwater, and harsh chemical exposures. These heavy-duty 316 ss hose clamps are essential for offshore, marine, and chemical processing lines.

Evaluating your environment carefully—and understanding the differences in 304 vs. 316 stainless steel performance—guarantees your secure connections hold up over years of service without cracking or premature corrosion.

2 Specialized Hose Clamp Variations

Standard clamps handle everyday tasks easily, but demanding environments require targeted engineering. We design specialized stainless steel hose clamps to tackle high pressure, extreme temperature swings, and tight spaces without failing.

Heavy Duty and Marine Hose Clamps

Harsh marine environments and heavy industrial equipment require maximum clamping force and ultimate corrosion resistance.

• • 316 Marine Grade: 316 stainless steel hose clamps feature added molybdenum to resist pitting from saltwater, brine, and aggressive chemicals.
  • Reinforced Bands: Heavy duty stainless steel hose clamps utilize thicker bands and smooth, rolled edges to prevent hose damage under extreme tension.
  • System Integration: When setting up heavy machinery, pairing these fasteners with our durable wire cable clamps ensures all fluid lines and electrical routing remain secure under severe vibration.

Constant Torque and High Torque Clamps

Temperature fluctuations cause hoses to expand and contract, which often leads to cold leaks in standard fittings.

A stainless steel heavy duty hose clamp with constant torque technology maintains consistent sealing pressure automatically, eliminating the need for constant manual retightening.

Micro and Low-Profile Hose Clamps

When working in cramped engine bays, compact equipment, or tight control panels, standard clamp housings simply won’t fit.

• • Compact Footprint: Micro adjustable stainless steel hose clamps deliver full sealing strength in a minimal form factor.
  • Snag-Free Design: Low-profile housing prevents snagging on adjacent lines, wiring, or surrounding components.
  • Precision Fit: Ideal for small-diameter fuel, vacuum, and emission lines where space is severely restricted.

Primary Application Scenarios

Because of their superior grip and resistance to environmental wear, our stainless steel hose clamps deliver leak-proof reliability across critical industries worldwide.

Marine and Offshore Applications

Saltwater environments demand maximum corrosion resistance. We supply marine-grade 316 stainless steel hose clamps to prevent dangerous leaks on ocean-going vessels, docks, and offshore rigs.

• • Engine & Fuel Lines: Maintains tight, dependable seals under heavy vibration.
  • Exhaust & Bilge Pumps: Withstands continuous exposure to saltwater spray and fuel residues.
  • Deck & Hydraulic Equipment: Prevents rust-related failure on exposed saltwater hydraulics.

Automotive and Heavy Machinery

Under the hood, extreme heat cycles and engine vibration test every connection. Our heavy duty stainless steel hose clamps lock down radiator hoses, turbocharger pipes, and air intake systems without losing tension over time.

Plumbing and Industrial Hose Systems

In municipal and industrial facilities, a single fluid leak can stall operations. We manufacture 304 stainless steel hose clamp options built for continuous fluid pressure and harsh washdown conditions.

• • Municipal Water Lines: Provides long-term structural integrity outdoors and underground.
  • Chemical Processing: Resists pitting and chemical corrosion in heavy process lines.
  • Food & Beverage Processing: Delivers hygienic, rust-free connections across sanitary hose setups.

How to Choose the Right Stainless Steel Hose Clamp

Selecting the ideal stainless steel hose clamps requires balancing precise sizing, pressure handling, and environmental resistance. Here is how we recommend choosing the perfect clamp for your application.

Measuring Hose Size and Diameter Range

Never select a clamp based on the hose’s inner diameter (ID). Always measure the outer diameter (OD) after the hose is installed on the fitting to ensure a leak-proof seal.

• • Step 1: Push the hose completely onto the barb or fitting.
  • Step 2: Use a caliper to measure the outside diameter over the fitting.
  • Step 3: Select an adjustable stainless steel hose clamp where your measured OD falls in the middle of the clamp’s adjustment range.

Evaluating Pressure and Torque Requirements

Operating pressure determines the clamp style and band strength you need:

• • Low to Medium Pressure (< 50 PSI): Standard worm-drive metal hose clamps provide reliable sealing for vacuum, air lines, and basic fluid transfers.
  • High Pressure (> 50 PSI): Use heavy duty stainless steel hose clamps, such as T-bolt or high-torque designs, to prevent line blow-offs under heavy stress.
  • Torque Rating: Always follow recommended installation torque. Over-tightening standard clamps can strip band threads and rupture soft hose walls.

Matching Clamp Material to Environmental Conditions

Selecting the right grade ensures long-term service life without corrosion failure. Evaluating core heat resistance and material properties helps guide reliable hardware selection across demanding setups.

• • 304 Stainless Steel Hose Clamp: Ideal for standard industrial, automotive, and general outdoor uses with basic weather exposure.
  • 316 Stainless Steel Hose Clamps: Required for marine, saltwater, and harsh chemical environments due to added molybdenum for maximum corrosion defense.
  • All-Stainless Construction: Verify that the screw, band, and housing are all stainless steel (W4 or W5 classification) to prevent galvanic rust on critical components.
