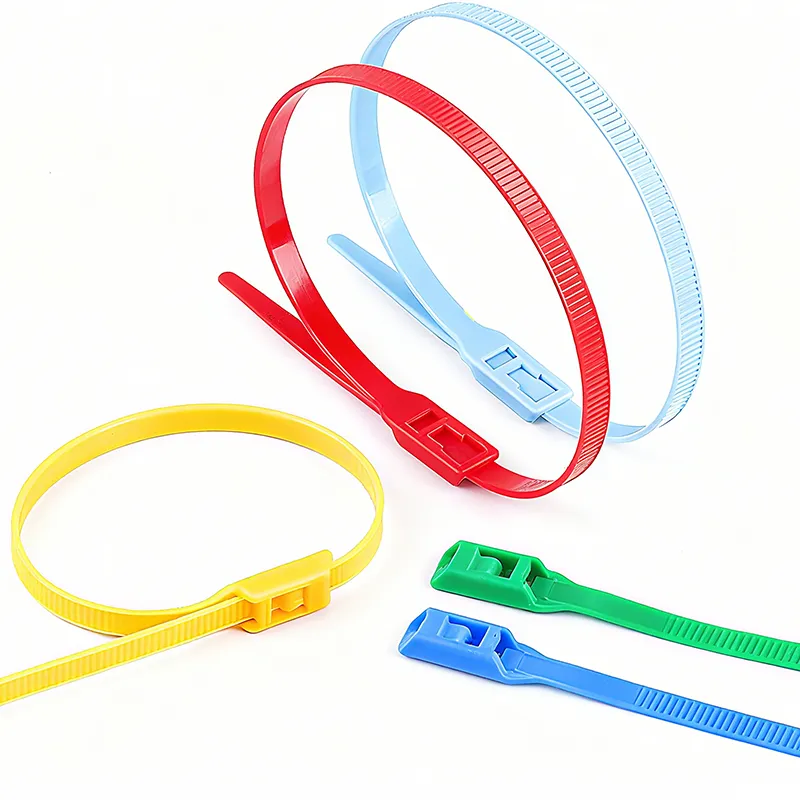

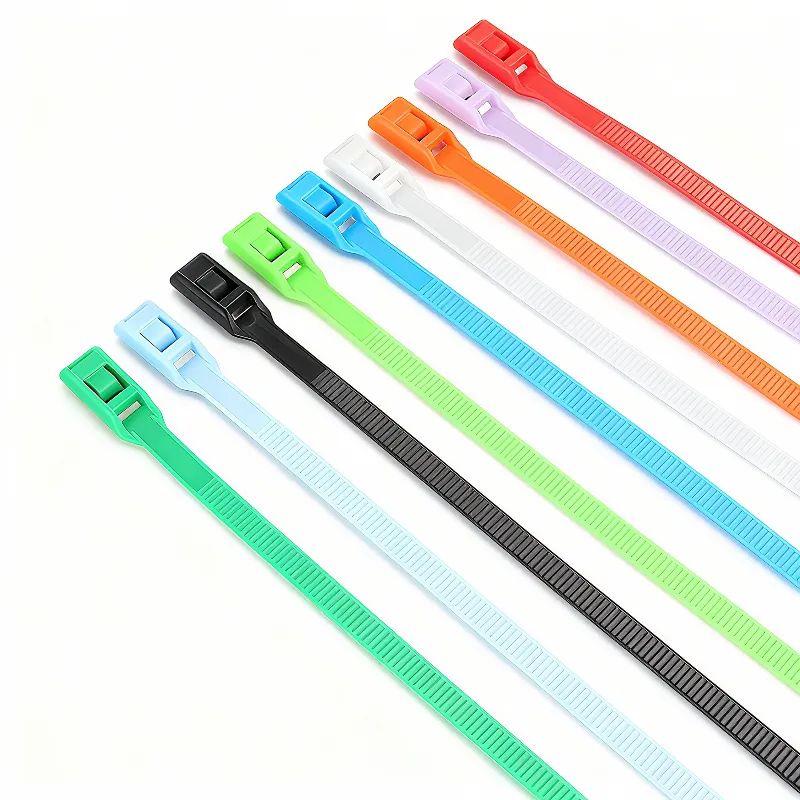

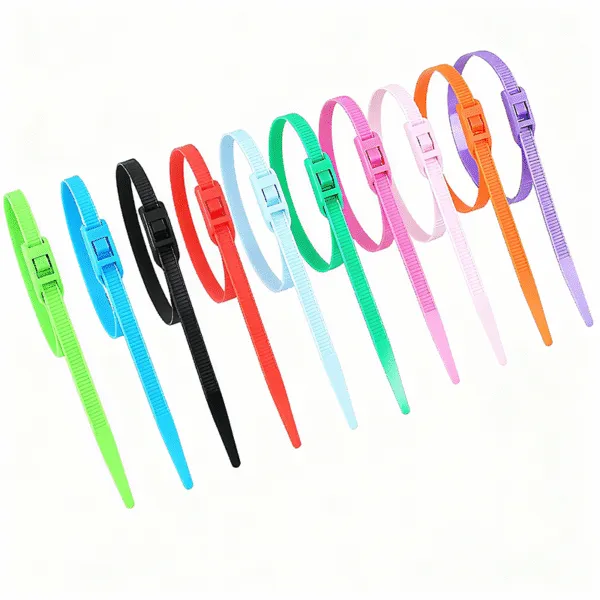

What Are Low Profile Cable Ties?

Low Profile Cable Ties represent a specialized improvement in nylon cable ties, designed for cable management scenarios with limited space or strict aesthetic requirements. Compared with conventional ties, their locking head uses a flattened design that sits closer to the mounting surface; after trimming the tail, the end is flush with the head, producing a smooth surface. This design not only saves installation space but also significantly reduces the risk caused by protrusions or sharp edges. Traditional ties with protruding heads can interfere in cabinets or precision equipment, whereas low profile cable tie structural optimization achieves compact cable management, safety, and visual neatness.

Structure and Advantages

Structural Description

Low profile cable ties use a precision integrated structure design, mainly consisting of three core components:

Low head design: The head is flat and significantly lower than a standard head. Internally it contains a precisely molded “convex” style guide channel and a built-in pawl with teeth that form the core locking mechanism. Its unique parallel insertion design allows cables to lie straighter after installation without the head causing bending or interference, making it especially suitable for cabinet wiring, electronic equipment, medical instruments and communication modules.
High-strength strap body: The strap is made of tough nylon material, with evenly spaced one-way angled teeth on one side and a smooth surface on the other. The tip is tapered for easy insertion into the head.
One-way pawl locking principle: When the strap tip passes through the head’s “convex” channel, the built-in elastic pawl precisely engages the strap teeth with an audible click confirming the lock. This mechanism allows smooth forward feeding and incremental tightening while instantly locking under reverse tension to prevent loosening.

Vantaggi

Space saving: The low-profile, flush-head design of fascette stringicavo a basso profilo makes them ideal for cabinets, distribution boxes and other confined spaces, enabling compact routing and avoiding interference with surrounding components.
Superior safety: Rounded smooth heads without sharp corners. After trimming, the tail can be fully hidden inside the head to create a flush surface, fundamentally eliminating snagging and cut risks.
Neat professional appearance: Flush installation of low profile zip tie bundles produces tidy, uniform harnesses that enhance aesthetics and demonstrate attention to detail and professional standards.

Technical Specifications and Product Parameters

Tipo	Length (Inch)	cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits	cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits	Max. Bundle Dia. (mm)	Min Tensile Strength (lbs)	Min Tensile Strength (kg)
WD-8x350LP	15″	350	7.3	90	70	32
WD-8x400LP	16″	400	7.3	105	70	32
WD-10x400LP	16″	400	8.8	105	100	45
WD-10x450LP	18″	450	8.8	130	108	49

Regarding color: Standard black or white low profile cable ties are universally applicable in most scenarios. For playgrounds or children’s activity areas where color matching is desired, we also offer 20 color options.

Common Material Analysis (Material Analysis)

The common materials for low profile cable ties are Nylon 6 or Nylon 66. The following table summarizes the performance characteristics of both materials.

cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits	Nylon 6 (PA6)	Nylon 66 (PA66)
Moisture Absorption	35% (23℃ – 50% RH)	25% (23℃ – 50% RH)
Operating Temperature Range	-10℃ to +75℃	-20℃ to +85℃
Toughness	cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits	Good
Resistenza alla Trazione	Good	cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
Costo	Inferiore	cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits

Nylon 6 vs. Nylon 66 — Summary:

When to prefer Nylon 66: For most industrial, electrical, telecommunications and outdoor applications, Nylon 66 is the more reliable, professional choice. Its higher tensile strength, wider temperature tolerance and lower moisture absorption ensure long-term stability in harsh or variable environments. Although costlier, it provides essential reliability and safety.

When to consider Nylon 6: Suitable for indoor, ambient-temperature, dry environments for general bundling, harness organization or low-strength, cost-sensitive one-time applications. Its good toughness can meet scenarios requiring slight deformation.

Typical Applications

Compact server cabinets and tight equipment spaces

The low-head design of low profile tie wraps significantly reduces space occupation and prevents interference with nearby components, making them ideal for servers, industrial control cabinets and other narrow environments for secure, efficient cable management.
