Saddle Cable Tie Mounts: Core Design Overview

Are you dealing with heavy wire bundles shifting or vibrating loose in your equipment? When standard adhesive backs fail under pressure, our saddle cable tie mounts deliver the structural rigidity your industrial applications demand.

What is a Cable Tie Saddle Mount?

A saddle type tie mount features a specialized “cradle-shaped” design built for maximum wire stability. Unlike flat mounting bases, this cradle cable tie mount uses a deep U-shaped channel to physically cup the wire harness. The center of the mount integrates a heavily recessed screw hole. This precise engineering ensures the fastener head sits well below the cable routing path, completely preventing wire chafing, short circuits, or insulation damage.

How This Screw Mount Cable Tie Base Works

We engineered these cable management saddle mounts for straightforward, heavy-duty fastening. The mechanics are simple but highly effective:

• Secure Foundation: A standard pan head screw drives through the recessed center hole, mechanically anchoring the base to your panel, wall, or chassis.
• Simple Threading: You pass a standard nylon tie through the perfectly aligned side slots.
• Flush Routing: As you cinch the tie down, the zip tie saddle mount pulls the wire bundle deeply into the cradle. This keeps the entire harness flush, tightly secured, and completely immobilized against the mounting surface.

This direct, screw-fixed mechanism guarantees your infrastructure stays exactly where you installed it, completely eliminating the failure risks associated with adhesive peeling.

Key Advantages of Saddle Cable Tie Mounts

When we manufacture our saddle cable tie mounts, we focus on three core performance metrics: locking your wires in place, surviving harsh environments, and meeting strict safety codes. Here is exactly why our saddle type tie mounts outperform standard routing solutions in heavy-duty applications.

• Maximum Stability: The deep, curved cradle design is built to grip. Acting as a heavy-duty wire harness saddle clip, it actively prevents wire bundles from slipping sideways. This design absorbs constant movement and stops the vibration wear that destroys standard harnesses. Once you cinch your zip tie saddle mount down, the routing stays perfectly flush.
• Industrial Durability: We build these using premium Nylon 6/6. This provides our cable tie mounting brackets with exceptional aging resistance and high-grade electrical insulation. Crucially, the material maintains a precise 2.7% to 2.8% humidity absorption rate. Maintaining this exact moisture balance keeps the plastic flexible and prevents the root cause of nylon tie breakage when exposed to extreme industrial conditions.
• Safety & Compliance: Safety is non-negotiable for industrial cable tie bases. Our products are fully certified flammability 94V-2 tie mounts, meaning the material will self-extinguish quickly in the event of an electrical fire. Backed by rigorous international quality certifications, these screw-fixed cable tie mounts deliver total peace of mind for complex, high-risk wiring jobs.

Technical Specifications for Saddle Cable Tie Mounts

When routing heavy wire bundles, precision matters. We manufacture our saddle type cable tie mounts in multiple dimensions so you get the exact cradle depth and screw fit your project requires.

Check the sizing matrix below to match your hardware with the appropriate max tie capacity. For the most secure hold, thread appropriately sized plastic cable ties through the cradle to keep your bundles flush against the mounting surface.

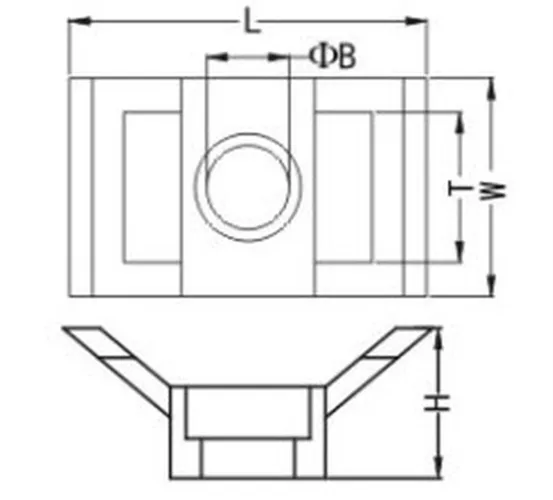

Saddle Mount Sizing Matrix

(Note: Dimensions are standard manufacturing averages; slight tolerances apply.)

Environmental Tolerances

Industrial environments are unforgiving. That is exactly why our screw-fixed cable tie mounts are engineered from durable Nylon 6/6 to withstand severe temperature fluctuations without cracking, shrinking, or losing their structural integrity.

• Working Temperature: -40°C to +85°C
• Installation Temperature: -20°C to +85°C

Installation Tip: If your job site routinely hits the lower limits of this temperature spectrum, we strongly advise pairing your cable tie saddle mount with dedicated cold weather cable ties. This prevents standard fastening materials from becoming brittle and snapping during sub-zero installations.

Common Industry Applications for Saddle Cable Tie Mounts

We see these versatile cable tie mounting brackets utilized across some of the most demanding industries globally. When paired with reliable high-quality nylon cable ties, our saddle mounts deliver unbeatable stability for heavy-duty routing.

• Electrical Panels & Enclosures: A zip tie saddle mount keeps complex electrical wiring routed cleanly, preventing dangerous tangles and shorts inside crowded control boxes.
• Automotive & Heavy Machinery: Heavy machinery naturally vibrates. Our wire harness saddle clips lock wiring bundles down tight to the mounting surface, stopping friction and mechanical wear.
• HVAC & Plumbing: When you need to strap pipes or rigid conduits safely, a heavy duty tie mount provides the exact structural support required for both overhead and wall installations.
• Telecommunications & IT: For data centers managing massive server racks, asaddle type tie mount ensures a highly organized, easily traceable cable infrastructure.

Installation Guide for Saddle Cable Tie Mounts

Setting up a screw mount cable tie base is a straightforward process, but following the correct steps ensures maximum security and longevity for your wire harnesses. Here is how we recommend installing our heavy-duty saddle mounts:

• Step 1: Select the right screw. Match the appropriate pan head screw—typically a #6 or #10—to the specific model of your cable tie saddle mount.
• Step 2: Secure the base. Drive the screw to firmly attach the mount to your pre-drilled mounting surface. The recessed screw hole design guarantees the head sits entirely flush, preventing any friction or damage to your wires.
• Step 3: Thread the tie. Slide a compatible nylon tie directly through the side slots of the cradle. If you are training a team or refining your assembly process, reviewing proper techniques for how to use zip ties can ensure your routing stays organized and perfectly aligned.
• Step 4: Cinch and trim. Pull the tie tight around your wire bundle to lock it firmly into the saddle type tie mount, then cleanly trim the excess tail for a professional, flush finish.

Frequently Asked Questions About Saddle Cable Tie Mounts

What is the difference between a cable tie saddle mount and an adhesive mount?
The main difference is load capacity and longevity. A screw mount cable tie base anchors directly into the surface using a screw, giving you a permanent, heavy-duty hold that will not fail under heavy weight or constant vibration. Adhesive mounts are fine for quick, light-duty wire management, but the backing tape can dry out, weaken, or peel off when exposed to heat, moisture, or heavy bundles.

Are these saddle type tie mounts suitable for outdoor use?
Yes. Our Nylon 6/6 cable tie mounts are engineered for harsh conditions, reliably operating in temperatures dropping to -40°C and climbing up to +85°C. However, if your wiring will be constantly exposed to direct sunlight outdoors, we highly recommend using UV-resistant black saddle mounts to prevent the nylon from becoming brittle over time. You can browse our complete lineup of heavy-duty products to find the right weather-rated mounting hardware for your project.

How do I request a custom mold or bulk sample?
We control our manufacturing process, which means we can easily adapt to the exact needs of our global industrial partners. Whether you need a custom mold for a specialized cable tie mount saddle or want to test a bulk sample on your assembly line before making a large commitment, just contact our sales team. We will arrange the specifications and ship samples directly to your facility.
