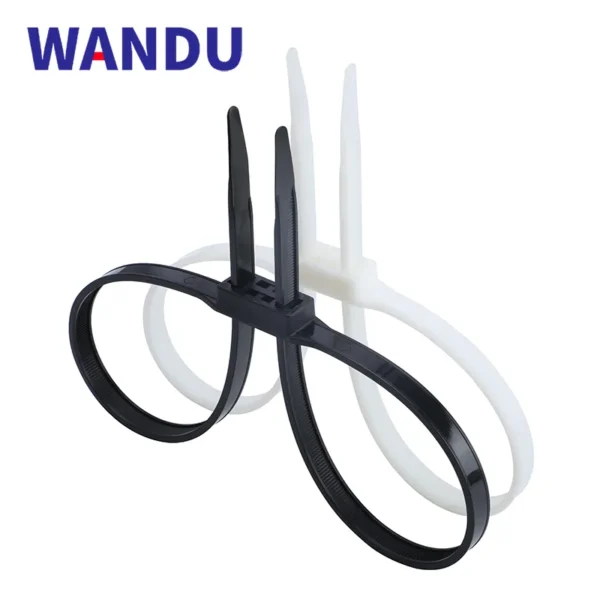

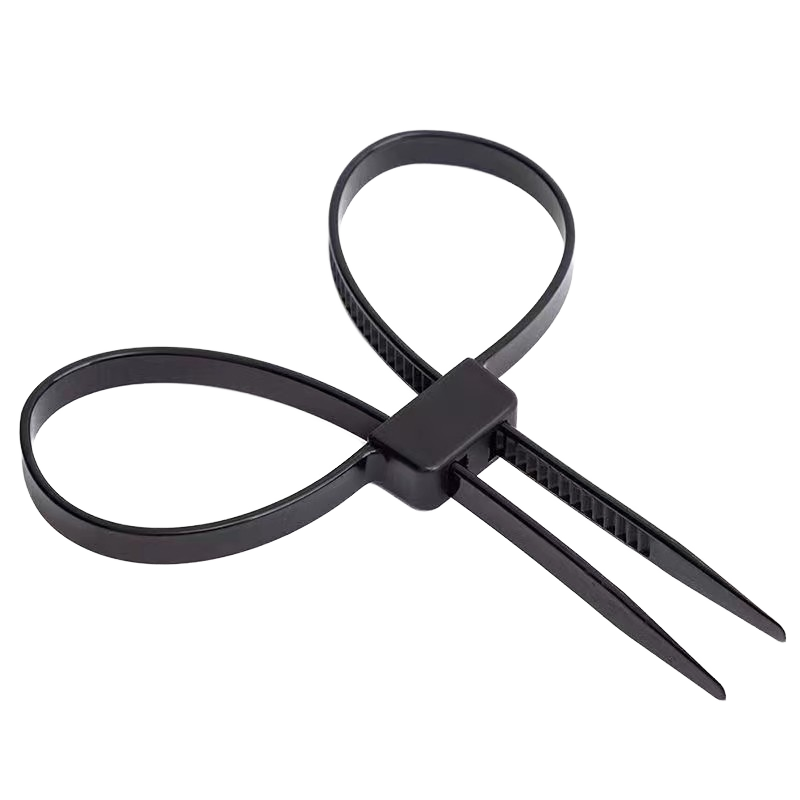

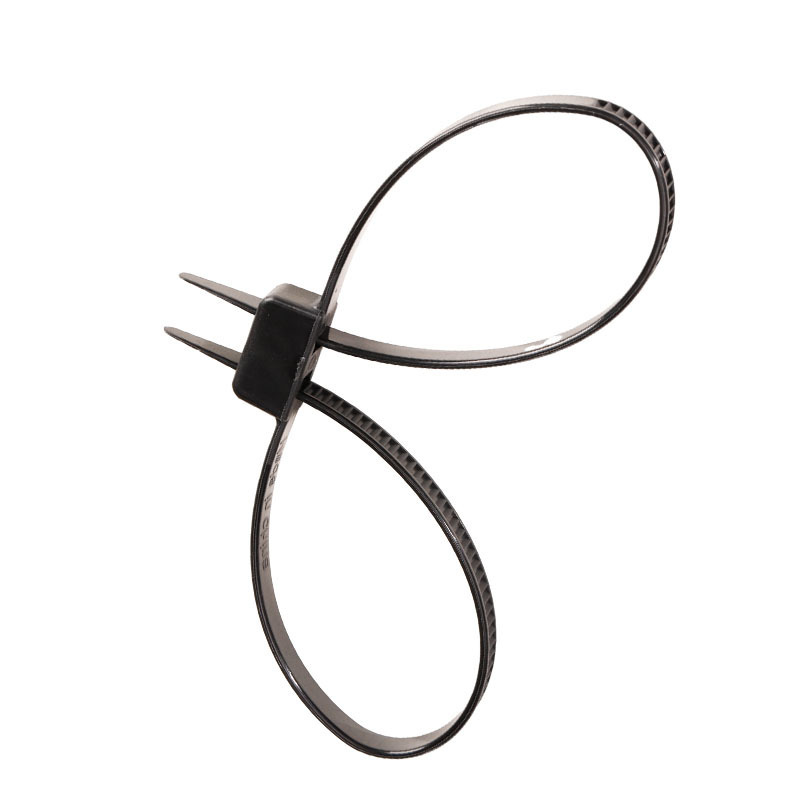

What are Double Loop Cable Ties
As an innovative design, double loop cable ties have their core advantage in the unique dual loop structure. Unlike conventional ties that can only achieve single-point bundling, this tie can simultaneously secure two bundles of cables, or fix cables with pipelines. In narrow spaces where double reinforcement is required, this design shows significant advantages—it enhances binding stability and avoids redundancy and clutter caused by multiple ties, making wiring layouts more tidy and efficient.
Material and Specifications
- Material: Made of Nylon 66 or nylon 6, with high strength, toughness, and flame-retardant properties.
- Flame retardant grade: UL94V-2, higher flame retardant grades are available upon customization.
- Working temperature range: Typically -40℃ to +85℃, depending on the material.
- Color options: Black and natural are common, with red, yellow, and other colors available for classification or identification.
- Size options: Length 500mm–900mm, width 12mm–13mm, tensile strength 230 lbs. Below is the double loop cable ties chart for reference.
| Type | Length (Inch) | Length (mm) | Width (mm) | Max. Bundle Dia. (mm) | Min. Tensile Strength (lbs) | Min. Tensile Strength (kgs) |
|---|---|---|---|---|---|---|
| WD-12*500DT | 20″ | 500 | 12 | 60 | 230 | 100 |
| WD-12*700DT | 28″ | 700 | 12 | 90 | 230 | 100 |
| WD-13*900DT | 35.5″ | 900 | 13 | 110 | 230 | 100 |
Structural Comparison: Single Lock vs Double Lock Design
Conventional Nylon Cable Ties (Single Lock)
The design is based on a single locking mechanism. The tie relies on the serrations on the strap body engaging with the slots inside the lock head for one-way fastening. When in use, the strap is inserted through the lock and pulled tight, with the serrations locked, completing a one-time fastening.
Double Loop Cable Ties

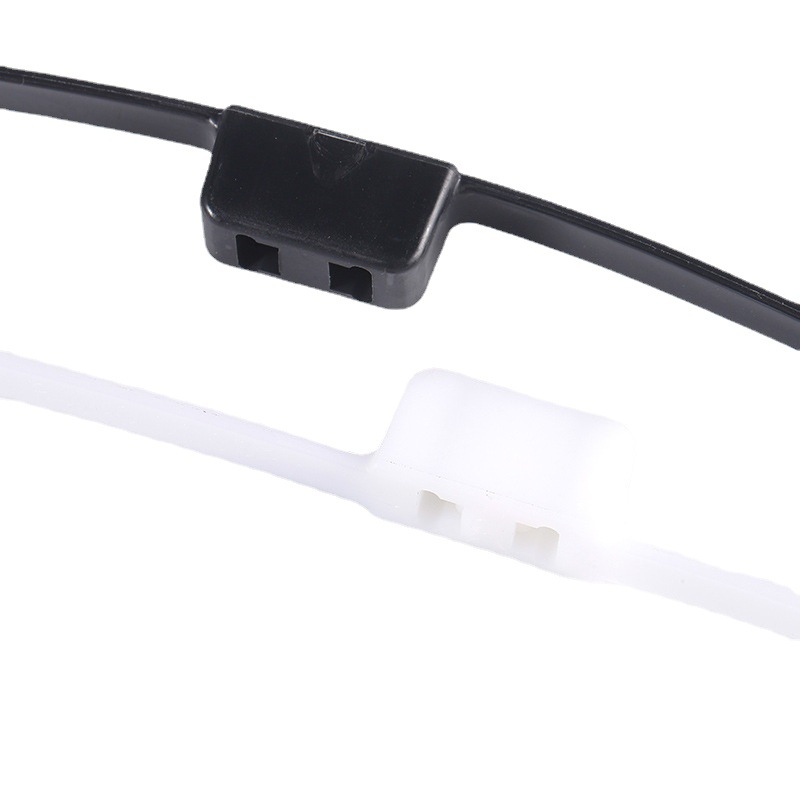

This design adopts a dual lock structure, adding a second locking point to the traditional single lock. Some models use a symmetrical dual lock layout or a strap with dual rows of serrations. This innovative structure allows users to secure two groups of objects with one tie, saving installation space while making wiring more neat and visually appealing.
Advantages of Double Loop Cable Ties
- High-efficiency bundling: Double loop tie wraps can simultaneously secure two bundles of cables or objects, reducing the required quantity and time, lowering material costs and management burden.
- Stable and reliable locking: The dual loop structure creates complementary locking force, effectively resisting vibration or pulling, preventing loosening, and ensuring stability in dynamic environments.
- Neat and aesthetic wiring: Enables simultaneous organization of multiple cables, creating tidy layouts, ideal for data centers, automotive harnesses, and applications with high aesthetic demands.
- Economic benefits: Compared to using two conventional ties, one double loop zip tie completes the task, saving nearly half the material cost and improving installation efficiency.
- Police and emergency use: Especially suitable for law enforcement and field emergencies, similar to handcuffs. They can quickly secure two objects or both wrists, providing convenient, cost-effective solutions for efficient operations.
Applications
- Automotive manufacturing and repair: Widely used in engine compartments and undercarriage areas to secure pipelines, harnesses, and cooling lines, resisting vibration during driving to prevent loosening or wear.
- Construction: Used for initial positioning of pipelines, cable grouping in trays, and temporary bundling of materials. Quick and flexible operation meets construction site needs.
- Agriculture and gardening: Suitable for securing drip irrigation hoses, greenhouse supports, or climbing plants. Their weather resistance withstands outdoor sun and rain, improving efficiency in setup and maintenance.
- Industrial field: Applied in factories, ships, or chemical plants for bundling complex power and control cables, as well as pipeline fixation, ensuring reliability under vibration and heavy loads.
- Transportation: Used in truck tarpaulin fastening, in-vehicle wiring management, and cargo fixation, preventing loosening during long-distance transport and ensuring safety.
- Police and law enforcement: As convenient temporary restraints, double loop zip ties for handcuffs quickly control suspects’ wrists or ankles. They are also used to seal evidence bags or mark restricted areas, balancing hygiene and cost-effectiveness.
FAQ
Q1: What is the main difference between double loop wire ties and traditional single loop cable ties?
A1: The biggest difference lies in the design structure. Traditional cable ties can only form a single loop to bind one bundle of cables, while the double loop wire tie, with its unique design, can secure two separate bundles or objects at the same time, expanding application scope and providing better overall stability.
Q2: Can these double loop zip ties be reused?
A2: To ensure locking force and reliability, most double loop zip ties are designed for single-use. Forcibly unlocking may damage the locking structure. However, if your project requires reusable models, these usually need special custom molds to achieve.
Q3: Can customized color and packaging be provided?
A3: Yes. We support flexible customization of color and packaging to match your brand identity or application needs. This service becomes available once our minimum order quantity (MOQ) requirement is met.
Q4: Is a special tool required to install double loop tie wire?
A4: In most daily applications, you do not need any tools. It is designed for manual installation, simply threading and tightening to complete the fixation, making the process very simple and quick.
