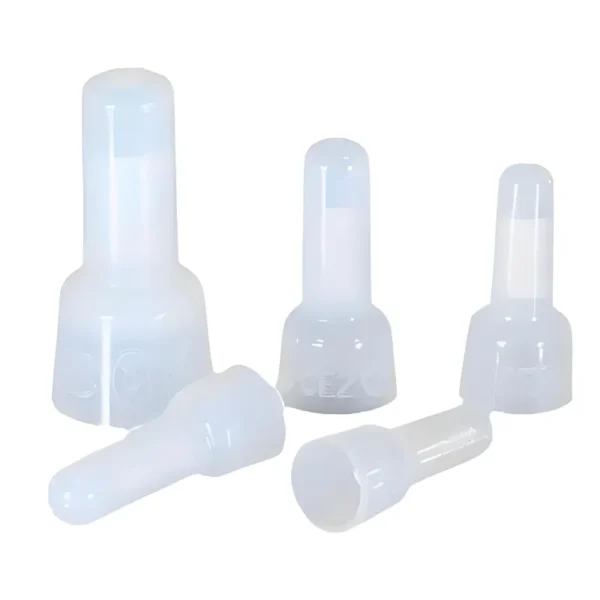

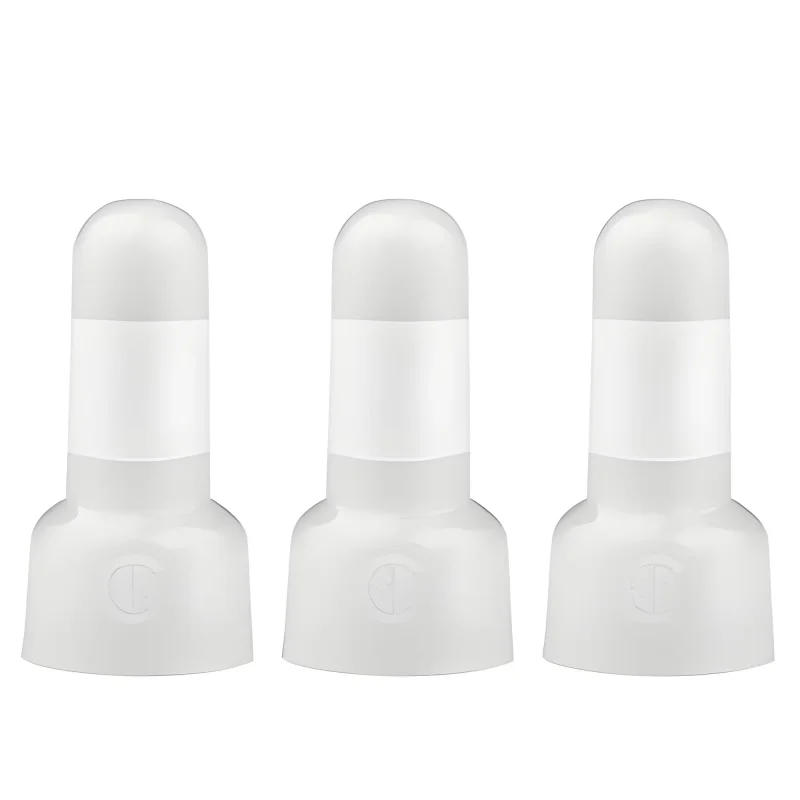

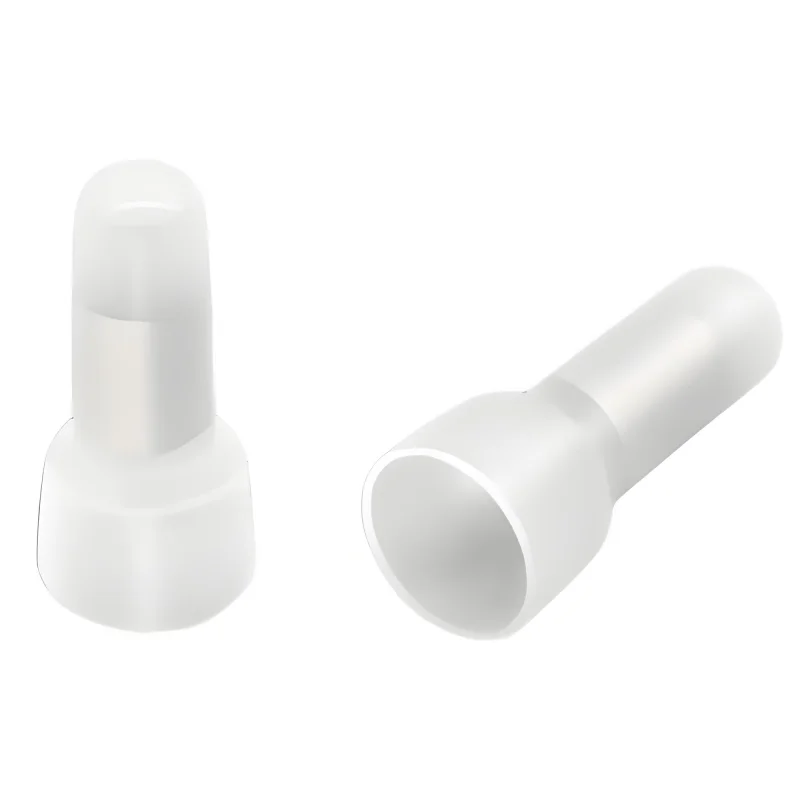

Closed End Connector

Key Features and Advantages

When securing wire terminations in demanding electrical environments, our closed end connectors deliver unmatched reliability. Engineered to provide a safe, permanent, and protective seal, these closed end crimp connectors are the industry standard for fast and secure electrical splices.

Nylon and Aluminum Construction

The foundation of a premium closed end splice connector lies in its material composition. Our closed end cap products are manufactured using a rugged nylon outer shell paired with a high-conductivity aluminum inner tube, delivering the perfect balance of insulation and conductivity.

• Premium Nylon Shell: The translucent nylon crimp cap provides excellent dielectric insulation, protecting your circuits from shorts and chemical exposure while allowing visual inspection of wire insertion.
• Aluminum Inner Sleeve: The internal aluminum tube guarantees a solid, low-resistance connection, firmly gripping the wire terminals to eliminate pull-outs.

Vibration Resistance and Durability

Mechanical stress and movement are the leading causes of electrical failure. Our closed end wire crimp connectors are specifically designed to withstand extreme vibration, mechanical shock, and harsh environmental conditions.

• Cold-Weld Security: Upon compression, the internal aluminum sleeve collapses tightly around the conductors, creating a permanent bond that will not loosen.
• Vibration-Proof Performance: Ideal for automotive, heavy machinery, and industrial appliance applications, these crimp closed end connectors maintain uncompromised signal and power delivery under constant vibration.
• Crack-Resistant Longevity: The heavy-duty nylon housing ensures your closed end crimp wire connectors will not crack, splinter, or degrade over time, protecting your critical wire joints for the long haul.

Standard Closed-End Crimp Wire Connector Types

We produce a complete lineup of standard closed end wire connectors to handle various wire gauges safely and efficiently. Whether you are terminating a small circuit or setting up heavy-duty machinery, selecting the correct closed end cap is essential. If your electrical installation involves exposed or harsh environments, we highly recommend securing your wire bundles with weather-resistant cable ties alongside these connectors for maximum protection and neatness.

Here is a quick breakdown of the standard closed end crimp connectors we supply.

CE1 and CE1X Connectors

The CE1 series is your go-to choice for smaller gauge wiring tasks. They create a reliable, permanent closed end splice connector for delicate applications.

• Wire Range: Best suited for 22-16 AWG.
• Common Uses: Home electronics, small lighting fixtures, and light automotive wiring.
• Design: Features a durable nylon crimp cap that insulates the internal wire terminals perfectly to prevent short circuits.

CE2 and CE2X Connectors

As our most widely used closed end crimp connector, the CE2 series handles the bulk of daily electrical routing and general maintenance.

• Wire Range: Designed for mid-sized 16-14 AWG wires.
• Common Uses: Household appliances, internal machinery wiring, and standard audio systems.
• Performance: These crimp closed end connectors grip the stripped wires firmly, ensuring a secure connection that resists minor vibrations and pull-outs.

CE5, CE5X, and CE8 Connectors

When dealing with thicker cables or combining multiple heavy wires, you need maximum capacity. These larger closed end crimp cap connectors provide the necessary space and holding power. If you are routing these heavy power lines outside, it is good practice to pair them with rugged outdoor zip ties to maintain structural integrity under load.

• Wire Range: CE5/CE5X supports 12-10 AWG; CE8 handles heavy 8 AWG wire.
• Common Uses: Industrial motors, heavy-duty commercial equipment, and main electrical panels.
• Durability: Built with thicker internal aluminum or copper tubes to handle high electrical currents without overheating or degrading.

Technical Specifications and Dimensions

Getting the right fit for your electrical setup is crucial. We engineer every closed end connector to meet strict tolerances, ensuring a secure and reliable hold for your wiring projects.

Wire Gauge (AWG) Compatibility

Matching your wire size to the right closed end splice connector prevents electrical shorts and loose connections. Our crimp wire terminals cover a wide range of standard AWG sizes to accommodate almost any standard job:

Material Specifications

We use high-grade materials to build every closed end wire crimp connector cap. The outer shell features a tough, flame-retardant nylon crimp cap (UL 94V-2 rated) that resists cracking under pressure. Inside, the core utilizes a tin-plated aluminum or copper insert, delivering excellent conductivity and corrosion resistance. While the tough nylon shell provides robust insulation on its own, pairing these setups with a shrink heat tube can offer ultimate weatherproofing for extreme environments.

Technical Drawings and Measurements

Precision matters when space is limited. Our closed end crimp caps are built to exact dimensional standards. When checking our technical drawings, focus on these three core measurements to ensure they fit properly within your junction boxes:

• Inner Diameter (ID): Determines exactly how many stripped wires will fit inside the conductive metal tube.
• Outer Diameter (OD): Dictates the total physical footprint the nylon shell will occupy.
• Total Length (L): Shows how deep the closed end cap sits on the wire once fully crimped.

Closed End Connector Compliance and Resources

Industry Compliance and Certifications

When wiring up your projects, safety always comes first. Our closed end connectors meet strict global industry standards, giving you peace of mind on every job. We ensure every nylon crimp cap and terminal is fully tested and certified for safe use across international markets.

• UL Listed: Rigorously tested for top-tier electrical and fire safety.
• RoHS Compliant: Free from hazardous materials, making these crimp wire terminals safe and eco-friendly.
• CE Certified: Meets comprehensive European health, safety, and environmental protection standards.

After securing your solid connections with a reliable closed end crimp connector, you can safely bundle the loose circuits using our spiral wrap for wires to maintain a neat and fully compliant electrical setup.

Product Documents and Instructional Videos

We want to make your installation process as smooth as possible. Whether you are installing a quick closed end splice connector for a simple repair or wiring up a large-scale industrial panel, having the right resources at your fingertips is key.

• Technical Spec Sheets: Easily download detailed dimensions, wire gauge limits, and voltage ratings for all our closed end crimp wire connectors.
• Step-by-Step Videos: Watch our short, practical guides on how to properly crush a closed end cap with your tool to get a secure grip without damaging the internal wires.
• Application Guides: Discover best practices for using closed end crimp caps in automotive, home audio, and machinery wiring environments.

For larger jobs that require clear circuit identification, you can easily pair your closed end wire connectors with our tag zip ties to keep your entire wiring harness organized, readable, and safe.

How to Select the Right Crimpable Closed End Connector

Choosing the exact closed end connector for your project saves time and prevents dangerous electrical failures. We want to ensure your wire splices stay secure, whether you are working on a simple home repair or a large-scale manufacturing run.

Matching Wire Size to Connector

Getting the wire gauge right is the most critical step. If your closed end wire connector is too large, the wires will slip right out after crimping. If it is too small, the bare copper won’t fit. You must calculate the combined size of all the wires going into the cap.

Here is how we recommend sizing your closed end crimp connectors:

• Calculate Total AWG: Add up the American Wire Gauge (AWG) of every single wire you plan to twist together.
• Verify the Range: Match that combined total to the connector’s specific wire range. For instance, a CE1 connector handles a different volume than a CE5.
• Test the Fit: The stripped wires should slide snugly into the internal aluminum tube of the nylon crimp cap before you even apply the crimping tool.

Cross References and Alternatives

Sometimes a standard closed end crimp cap connector isn’t the perfect fit for your specific environment. If you are routing cables that require heavy weatherproofing or inline setups, it is smart to look at alternatives.

While a closed end splice connector is unbeatable for quick pigtail connections, you might need a different approach for straight inline joins. In those cases, using standard crimp wire terminals combined with a durable shrink heat tube offers an excellent, moisture-resistant alternative.

Consider these common alternatives when planning your wiring:

• Wire Nuts: These are okay for temporary setups, but our crimp closed end connectors deliver a much more permanent, vibration-proof hold.
• Butt Splices: These are designed for straight, end-to-end connections rather than twisting multiple wires together inside a single closed end cap.
• Soldering: Highly secure and conductive, but it takes significantly more time and effort compared to the fast, reliable crimp of standard closed end wire crimp connectors.

• Frequently Asked Questions About Closed End Connector

• FAQ 1: What is a closed end connector and how does it work?

  A closed end connector is a type of electrical terminal used to securely join multiple wires into a single sealed end. It features a nylon crimp cap combined with an internal aluminum sleeve, which creates a permanent connection when compressed. During installation, the stripped wires are inserted into the closed end crimp connector, and the internal metal tube collapses tightly around them, forming a low-resistance, vibration-proof electrical splice. This design ensures long-term reliability and prevents wire pull-outs or short circuits.

  FAQ 2: How do I choose the right closed end crimp connector size?

  Selecting the correct closed end crimp connector depends on the total wire gauge (AWG) of all wires being joined. You should first calculate the combined AWG and then match it to the connector’s specified range. For example, CE1 connectors are ideal for 22–16 AWG wires, while CE5 or CE8 connectors are better suited for heavier applications. A properly sized closed end wire connector should allow wires to fit snugly into the aluminum sleeve before crimping, ensuring a secure and durable electrical connection.

  FAQ 3: Are closed end wire connectors better than wire nuts or butt splices?

  Yes, closed end wire connectors offer several advantages over alternatives like wire nuts and butt splices. Unlike wire nuts, which are often used for temporary setups, closed end crimp connectors provide a permanent, vibration-resistant connection due to their cold-weld crimping design. Compared to butt splices, which are designed for inline connections, closed end splice connectors are better for combining multiple wires into a single sealed end. They are widely preferred in automotive, industrial, and electrical applications where durability and reliability are critical.
