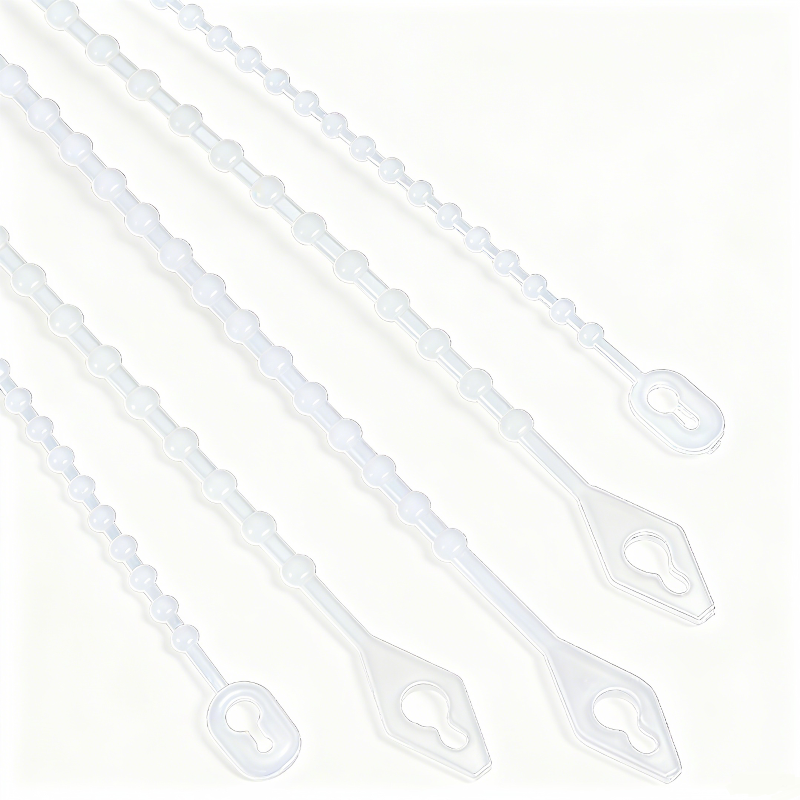

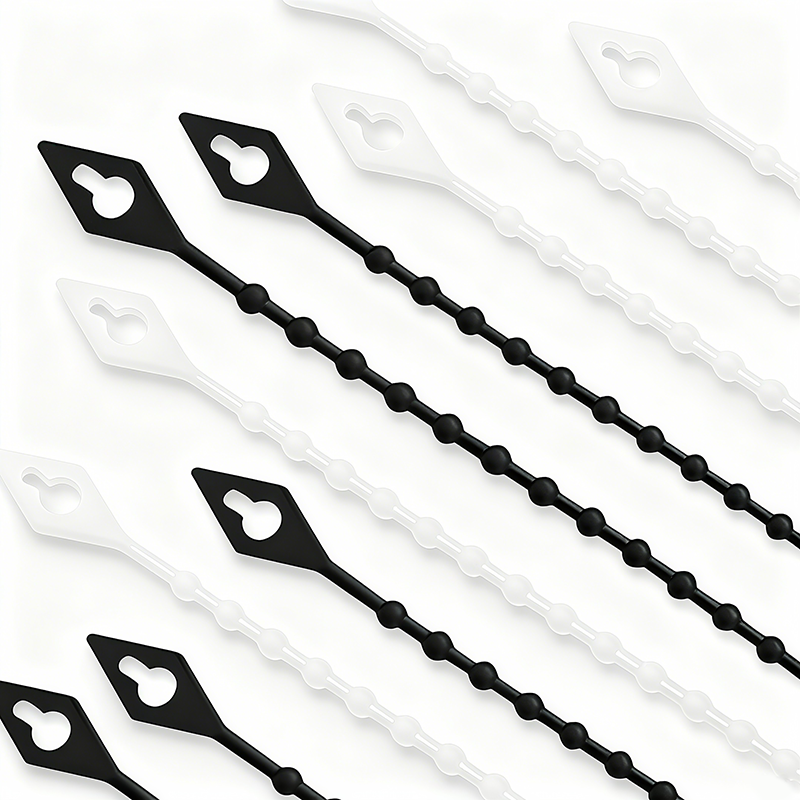

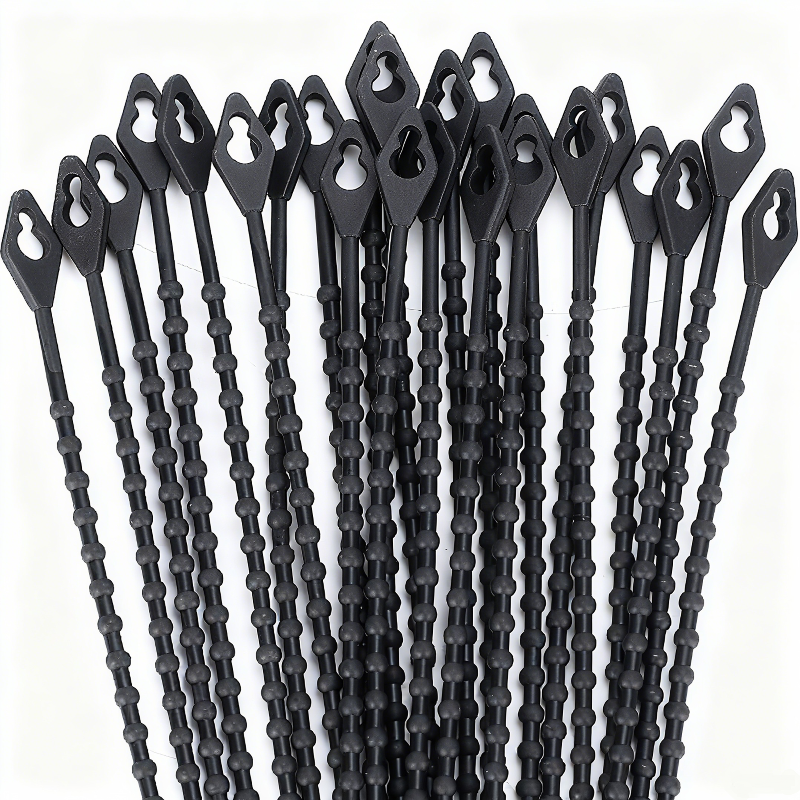

What are Beaded Cable Ties
Beaded Cable Ties, also known as beaded zip ties or beaded wire ties, are not just ordinary cable management tools. Their unique beaded design enhances cable flexibility and allows for unprecedented adaptability and secure fastening. Whether for home cable organization or tidy wiring in offices and data centers, they handle it all with ease. Say goodbye to clutter—this practical yet stylish tool keeps your space neat and efficient.
Material Types
Beaded cable ties are commonly made from Nylon 66, Nylon 6, or PE. The following table compares the properties of these three materials. Nylon 66 offers the best overall performance, featuring high strength and good heat resistance, making it the first choice for industrial use though slightly more expensive. Nylon 6 is a balance of toughness and cost-effectiveness, with good impact resistance but higher water absorption. PE excels in moisture and corrosion resistance and is the most economical option, ideal for humid environments, though it has limited strength and temperature resistance.
| Property | Nylon 66 (PA66) | Nylon 6 (PA6) | Polyethylene (PE) |
|---|---|---|---|
| Tensile Strength | ★★★★★ | ★★★★☆ | ★★★☆☆ |
| Toughness | ★★★☆☆ | ★★★★☆ | ★★★★★ |
| Water Absorption | High | Higher | Extremely Low |
| Melting Point | ~260°C | ~220°C | ~120°C |
| UV Resistance | Good (requires modification) | Moderate (requires modification) | Poor (requires modification) |
| Cost | Medium | Moderate to Low | Low |
Structure and Working Principle
Structure of Beaded Cable Ties
Body: A flexible nylon strap molded with evenly spaced spherical or oval beads along its length. These beads are the core feature, replacing the traditional one-way teeth of standard cable ties.
Lock: The locking head has a gourd-like shape. The lower large hole allows the strap to pass freely, while the upper smaller hole is slightly larger than the strap diameter but smaller than the bead diameter.
Working Principle
The operation of Cable ties beaded is intuitive and convenient. To use, insert the tail of the strap through the large hole of the lock, allowing the body to move freely.
Locking: The key lies in the smaller hole of the lock, which precisely fits between two adjacent beads when the strap is pulled tight. This action functions like a movable pin, securely holding the connection under tension for reliable fastening.
Unlocking: To release, simply press the tail and pull downward gently, lifting the locking tongue away from the bead junction. The strap can then slide out smoothly, enabling easy unlocking and repeatable use without damage.
Product Features and Advantages
1. Reusability
Beaded cable ties truly deliver “buy once, use long-term.” Their clever releasable design lets you easily adjust or replace cables without cutting or discarding them. This not only boosts maintenance efficiency but also represents an eco-friendly choice. However, this design slightly reduces tensile strength.
2. Bead Design and Protection
The round bead structure of Beaded cable tie is both aesthetic and functional. Each smooth bead evenly distributes pressure, preventing cuts or abrasions on delicate cable sheaths, ensuring reliable protection for your devices.
3. Easy Installation
Simply insert the strap through the lock and adjust to the desired tightness by hand—no tools are required for installation.
Product Specification Table
Beaded nylon cable ties are available in a limited range of widths, typically in three series. Other sizes can be customized upon request.
| Type | Length (inch) | Length (mm) | Beaded Dia. (mm) | Max. Bundle Dia. (mm) | Min. Tensile Strength (lbs) | Min. Tensile Strength (Kgs) |
|---|---|---|---|---|---|---|
| WD-3x100BT | 4″ | 100 | 2.5 | 25 | 10 | 4.5 |
| WD-3x150BT | 6″ | 150 | 2.9 | 35 | 10 | 4.5 |
| WD-3x200BT | 7″ | 180 | 2.9 | 45 | 10 | 4.5 |
| WD-3x240BT | 9.4″ | 240 | 2.9 | 53 | 10 | 4.5 |
Standard Packaging: 100 pcs/bag. Custom lengths, colors, materials, and packaging options available.
Applications of Cable Ties Beaded
Home and Office Cable Management
Core Advantage: Easily adjustable and releasable, ideal for managing frequently added or removed power and data cables at home or workstations.
Unique Value: The smooth, beaded strap surface protects cables from abrasion even during repeated adjustments.
Temporary Events and Display Wiring
Core Advantage: Perfect for temporary setups such as exhibitions, weddings, or stage lighting—providing secure fastening and tool-free removal afterward at minimal cost.
Unique Value: The reusability of Beaded zip ties offers superior economy and eco-friendliness compared to disposable cable ties, while looking more attractive.
Laboratory and Educational Use
Core Advantage: In circuit experiments or teaching demonstrations, components and wire layouts can be adjusted freely to support rapid iteration.
Unique Value: Non-destructive release prevents damage to delicate components that might occur when cutting standard ties.
Comparison with Standard Self-Locking Cable Ties
| Comparison Item | Beaded Cable Ties | Standard Nylon Ties |
|---|---|---|
| Reusability | ✅ Reusable | ❌ Single-use only |
| Tension Adjustment | ✅ Adjustable | ❌ Fixed after locking |
| Tensile Strength | Weak (45N) | High (80~1000N) |
| Tamper Resistance | No | Non-removable but can be cut |
| Material Options | Nylon / PE | Mainly Nylon 66 or Nylon 6 |
| Application Scenarios | Temporary / Reusable situations | Permanent fixation |
| Environmental Performance | Reusable and eco-friendly | Disposable waste |
FAQ
1. How many times can Beaded zip ties be reused?
Under normal use, they can be opened and closed dozens of times. The actual number varies depending on material and environmental conditions such as temperature and UV exposure.
2. What is the maximum tensile strength of Beaded wire ties?
For 3-series models, the tensile strength is around 45N. For higher strength requirements, customized wider sizes can be made.
3. How many colors are available for Beaded tie wraps?
Standard colors are black and white. With minimum order quantities, various custom colors are available such as red, yellow, blue, green, pink, orange, purple, brown, silver, and gold.
