What are Adhesive Cable Tie Mounts

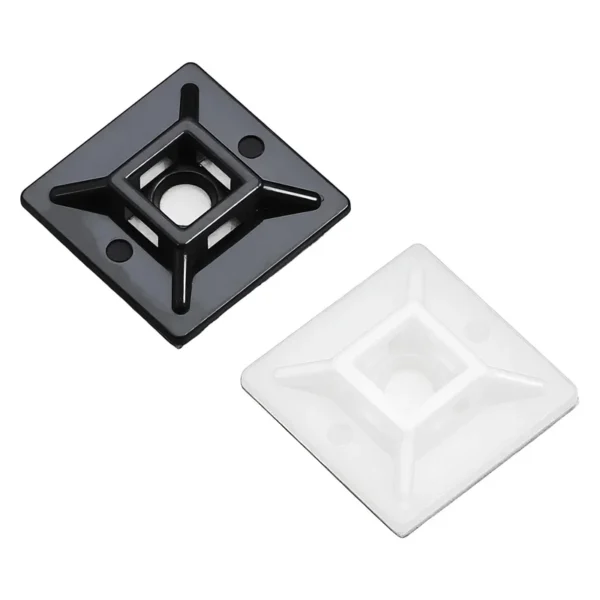

Adhesive cable tie mounts, also known as adhesive zip tie mounts or self adhesive tie wrap mounts, are compact and practical mounting accessories designed for organizing and securing wires and bundles. Each mount features a strong adhesive backing that bonds directly to smooth surfaces such as walls, metal, wood or plastic — providing a secure cable anchor without the need for drilling. Paired with nylon cable ties, they enable fast and tidy cable routing that remains stable over time. This product is widely used in household wiring, cabinet cable management, electrical control boxes and automotive interiors. Its simple design and easy installation make it ideal when drilling is not desirable or when surface integrity must be preserved.
Key Features
No drilling — faster installation
The base of adhesive cable tie mounts is fitted with a high-performance adhesive. Peel off the release liner and press the mount in place for an immediate, secure bond — saving significant installation time. This is especially useful for home, office and network installations where speed matters.
Broad compatibility with standard nylon ties
The top of the cable tie mounts adhesive features a cross guide slot for easy insertion and locking of cable ties. It fits standard widths from 2.5mm to 4.8mm with excellent compatibility.
Adheres to many smooth surfaces
These mounts bond reliably to glass, metal, plastic, smooth walls and wood. Available adhesive types include yellow adhesive, green adhesive and 3m adhesive cable tie mounts for applications that require stronger adhesion or rougher surfaces.
Structure & Components
1. Base
Self adhesive cable tie mounts use a square design and come in multiple sizes so users can choose the appropriate mount depending on cable count and load. Chamfered edges ensure the base sits flush against the surface to reduce lifting and peeling.

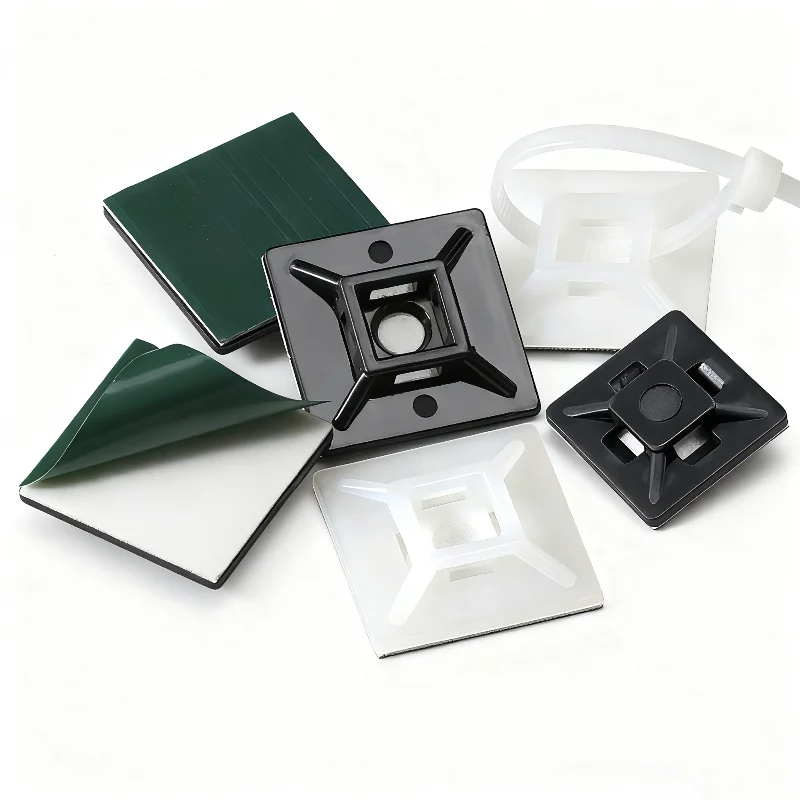

2. Adhesive Backing

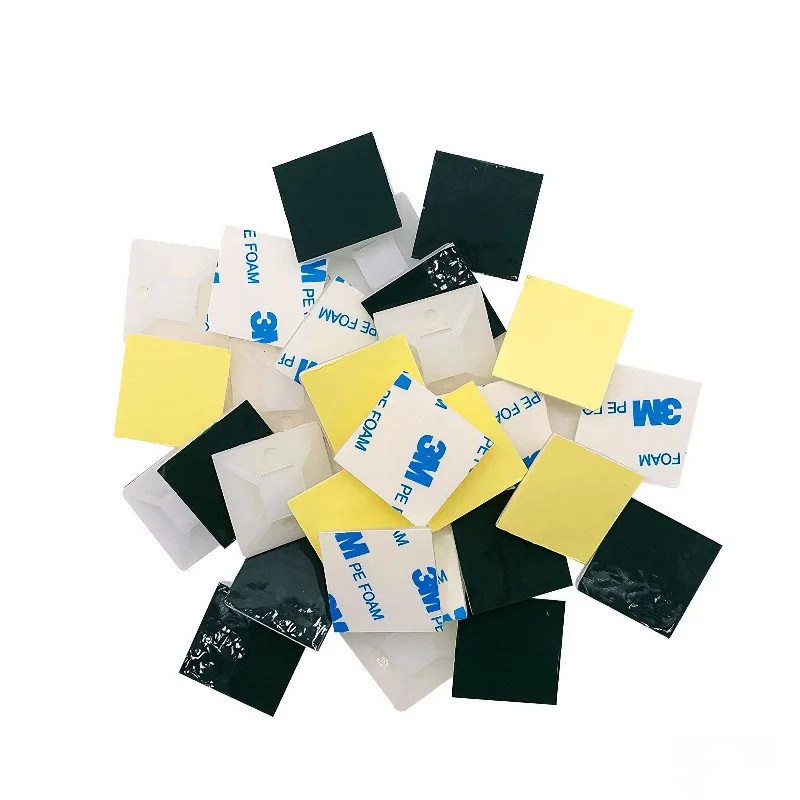

The adhesive layer is the core of the mount’s holding power. For different service environments, we offer yellow adhesive, green adhesive and 3m self adhesive cable tie mounts options to satisfy everything from standard to high-strength adhesion needs.
Adhesive Types — Comparison
To suit different environments, the zip tie adhesive mount is available with three adhesive options:
| Adhesive Type | Adhesion Strength | Recommended Surfaces | Temperature / Weather Resistance | Cost | Typical Applications |
|---|---|---|---|---|---|
| Yellow adhesive | Moderate | Smooth plastic, glass, metal | Standard | Low | Home wiring, small devices |
| Green adhesive | Strong | Slightly rough surfaces, automotive interiors | Good | Medium | Automotive, cabinets, network installations |
| 3M industrial-grade adhesive | Very strong | Multiple materials, outdoor, long-term mounts | Excellent | High | Industrial control equipment, electric cabinets, outdoor use |
Usage recommendations:
- Household & light-duty wiring: Yellow adhesive zip tie adhesive mounts.
- Server rooms / automotive / engineering: Green adhesive adhesive zip tie mount.
- Outdoor, high-temperature or long-term installations: 3m adhesive cable tie mounts.
Body Material Analysis — Nylon 6 & Nylon 66 (Nylon 6 / Nylon 66)
| Characteristic | Nylon 6 | Nylon 66 |
|---|---|---|
| Mechanical performance | Better flexibility | Higher strength and toughness |
| Cost | More cost-effective | Relatively higher price |
| Service environment | Suitable for normal indoor conditions | Better high-temperature performance; wider working temperature range |
| Durability | Sufficient for everyday cable routing | Better wear and aging resistance |
| Typical applications | General wiring and common uses | Cabinet installations, electrical control units, vehicle components where higher performance is required |
Most industrial customers prefer adhesive cable tie mounts made of Nylon 66 due to the stronger mechanical and temperature performance.
Specification Details
| Model | Length (mm) | Width (mm) | Hole Diameter (mm) | Height (mm) | Tie Slot Width (mm) | Packaging |
|---|---|---|---|---|---|---|
| HS-100 | 12.5 | 12.5 | — | 4.2 | 3.2 | 100 pcs / pack |
| HS-101S | 19.5 | 19.5 | 3.0 | 5.0 | 4.5 | — |
| HS-101 | 21 | 21 | — | 4.5 | 4.5 | — |
| HS-102 | 28 | 28 | 6.0 | 6.4 | 5.5 | — |
Installation Steps
- Clean the mounting surface with isopropyl alcohol to remove oil, dust and ensure the surface is dry.
- Peel off the release liner from the bottom of the adhesive cable tie mounts to fully expose the pressure-sensitive adhesive layer. Avoid touching the adhesive surface with your fingers.
- Firmly press the adhesive cable mounts onto the intended location, apply pressure and hold for about 30 seconds to ensure a good bond.
- After bonding, wait at least 1 hour before applying load to allow the adhesive to cure sufficiently.

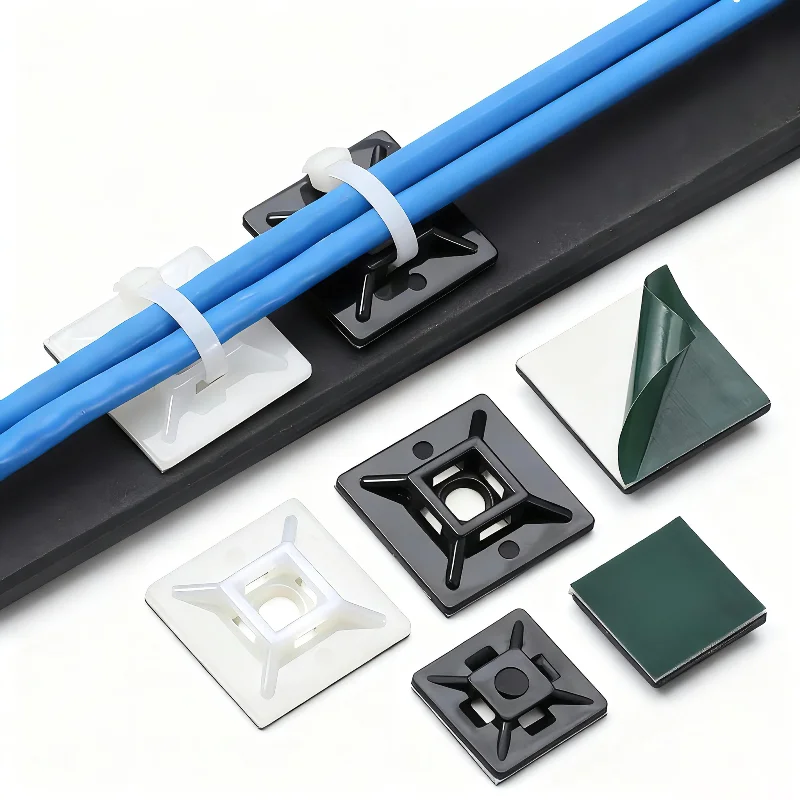

- Insert a cable tie through the self adhesive cable mounts, fasten in the normal way and secure the cables.
Comparison with Screw Mounts
| Item | adhesive zip tie mounts | Screw mounts |
|---|---|---|
| Installation | No tools required — stick in place | Requires drilling, screws and tools |
| Surface impact | No damage | Leaves holes, irreversible |
| Load capacity | Moderate (depends on adhesive) | High |
| Appearance | Cleaner — no exposed screws | Average |
| Installation speed | Very fast | Slower |
Applications
Cabinets and control boxes
Adhesive backed zip tie mounts are used to route and secure power cables, signal wires and pneumatic/hydraulic tubing inside control cabinets and distribution boxes to keep interiors tidy and maintenance-friendly.
Security and low-voltage systems
When installing CCTV cameras, alarm systems or network devices, zip tie adhesive backed mounts are used to fasten cables to walls or ceilings quickly without damaging surfaces.
Office & home
Adhesive zip tie mounts help organize wiring behind desks or secure small appliance cords in kitchens and bathrooms to maintain a neat living or working environment.
Automotive & transport
During vehicle modification or repair, self adhesive cable mounts organize interior lighting wiring, sensor harnesses and other wiring, resisting typical vibration and temperature changes.
Smart devices & temporary displays
Cable tie adhesive mount is suitable for temporary exhibition setups or smart home device cable management (e.g., routers, gateways). When removed properly, they generally leave no residue and support flexible layouts.
FAQ
Q1: Can zip tie adhesive-backed mounts be used outdoors?
A1: Yes. For best long-term outdoor performance, choose weather-resistant Nylon 66 combined with 3M industrial-grade adhesive.
Q2: Can the adhesive on self adhesive cable tie mount be reused?
A2: No. The adhesive is not designed for reuse. Replace the cable tie mounts self adhesive with a new mount if you need to reposition.
Q3: Which adhesive is best for rough surfaces?
A3: We recommend the 3M adhesive and ensuring firm pressure when applying the adhesive backed cable tie mounts — this provides the most stable bond on slightly rough surfaces.
Q4: Can adhesive cable tie mount work with different types of cable ties?
A4: Yes. They are compatible with a wide range of cable ties, including self-locking ties, weather-resistant ties and releasable ties.
